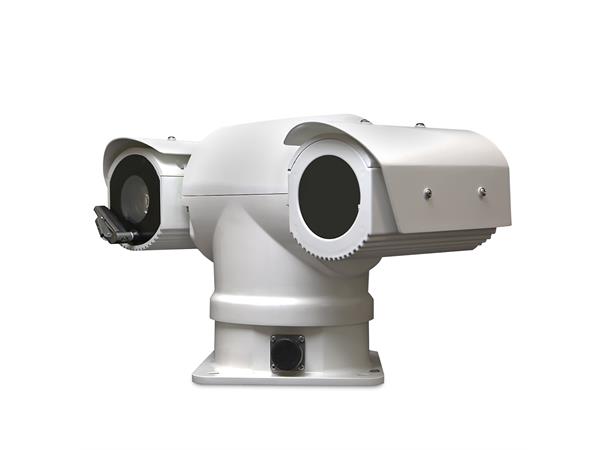

Opgal, ACM60A17V-PAP00 Compact dual PTZ Thermal Lens 60mm, 17u 640*480px

Opgal, ACM60A17V-PAP00 Compact dual PTZ

Thermal Lens 60mm, 17u 640*480px

Varenr: ACM60A17V-PAP00

Vumii’s Accuracii Mini HD is a compact and lightweight 24/7, night and day multi-sensor observation system developed for security applications. It allows long range observation and detection using state of the art thermal imaging and HD CMOS technology. The Accuracii Mini HD is a full IP-based system. It features a 1/2.8” Color HD CMOS sensor for day time operation and a 17µ 640x480 thermal core paired with one of several athermalized lens options: 25mm, 35mm, 50mm or 60mm. The thermal camera provides superior threat detection performance day or night. The system is designed and constructed to withstand the harshest environmental conditions, including rain, direct sunlight, humidity and dust.

Configurations

Accuracii Mini HD comes standard with both a thermal and visible light camera.  The visible light HD camera uses a continuous zoom 4.3 – 129mm lens integrated on a continuous 360° pan, +/- 90° tilt positioner. Several thermal engine and lens options are available for the thermal camera configuration.

Thermal Imager:

17µ: 640 x 480
Thermal Optics:

  • 35 mm athermalized
  • 50 mm athermalized
  • 60 mm athermalized
  • 26-105 mm continuous zoom, autofocus

Visible Optics:

Continuous Zoom 4.3mm – 129mm
