KEY FEATURES

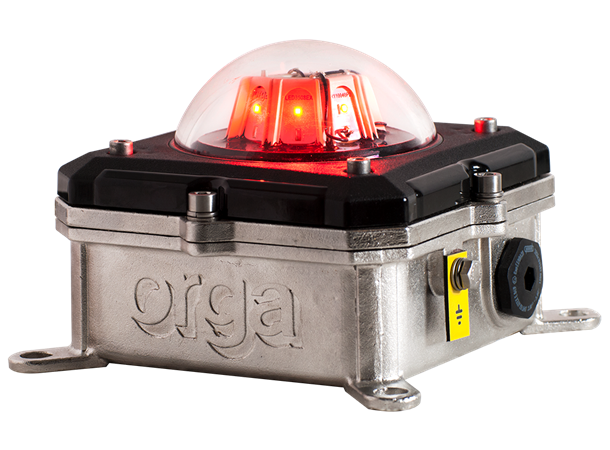

• Reliable low intensity aeronautical obstruction light
• Low cost of ownership
• Low power consumption
• Serviceable unit, parts are interchangeable
• Certified for Zone 1 areas with increased gas explosion hazard
• Compact design
• Impact resistant dome and stainless steel body
• Photometric test of independent institution
• Spacious, easy to open cable connection compartment

STANDARDS/CERTIFICATION

• Certified to ICAO Annex 14, volume l; Aerodrome design and operations, 6th Edition, 2013, chapter 6.3.2 – Type A low intensity obstacle light
• Certified to IMO standard MODU code; 2009 (Edition 2010), chapter 13.5.24
• Certified to CAA-UK CAP 437; Offshore helicopter landing areas – Guidance on standards, 7th edition, chapter 4, paragraph 4.3
• Complies with CAA-UK CAP 168; July 2010, chapter 4, paragraph 12.8.1a, 12.10.2, 12.11.3 and table 6A.1.11 – Low intensity aeronautical obstruction light – Group A
• Certified to Mining regulations of the Netherlands; 2002, article 5.5
• Cenelec EN 60079-0, EN 60079-7 and EN 60079-18
• SIRA 12ATEX3066;
  ATEX Ex II 2G Ex e mb IIC T4 Gb
• IEC 60079-0, IEC 60079-7 and
  IEC 60079-18
• IECEx SIR 12.0026;
  Ex e mb IIC T4 Gb
• NCC 12.1223; Ex e mb IIC T4 Gb

PERFORMANCE CHARACTERISTICS

• Steady burning; red
• Intensity: 10cd minimum
• Horizontal coverage: 360°
• Vertical beam profile: Visible from any point above the horizon
• Colour chromaticity within the boundaries as specified by ICAO
• Light source: LED (100,000 hours average life)

ELECTRICAL CHARACTERISTICS

• Operating voltage: 100-254Vac ; 50-60Hz
• Power consumption: 2.5W (4VA)
• Connection details: M4; two M25x1.5 cable entries
• Earth connection: internal M4 and external M6

PHYSICAL CHARACTERISTICS

• Dimensions (L x W x H):
  161 x 161 x 111mm
• Weight: 3.6kg
• Design degree of protection: IP66
• Operating temperature range: -40°C to +60°C
