KEY FEATURES

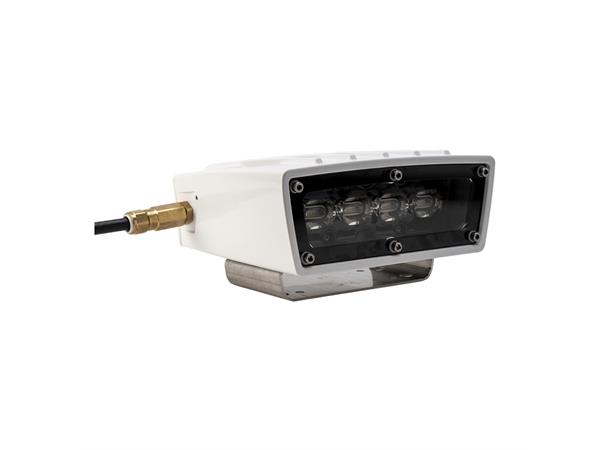

Reliable LED floodlight gives low cost ofownership
Low power consumption due to highly efficient LED lights source and lens system
Certified for Zone 1 areas with gas explosion hazard
Low profile design (<150 mm) allows direct mounting on helideck
Offshore resistant, high quality coating on cast light alloy base
Stainless steel (SS316) mounting facilities to prevent corrosion problems
Wide beam spread for optimised and even helideck illumination

STANDARDS/CERTIFICATION
Complies with CAA-UK CAP 437 9th edition; Standards for Offshore Helicopter Landing
Areas, chapter 4, paragraph 4.23 & 4.24
EN 60079-0, EN 60079-7, EN 60079-18 KIWA 20ATEX0068 X; ATEX II 2 G Ex eb mb IIC T6 Gb
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-18
IECEx KIWA 20.0019X; Ex eb mb IIC T6 Gb

ELECTRICAL CHARACTERISTICS
Operating voltage: see table
Power consumption: see table
Connection details: M4; one M20x1,5 cable gland entry
Earth connection: internal M4 and external M5

PHYSICAL CHARACTERISTICS
Dimensions (L x W x H): 248 x 278 x 143 mm (incl. mounting bracket)
Weight: 7 kg
Design degree of protection: IP66
Operating temperature range: -25°C to +55°C

PERFORMANCE CHARACTERISTICS
Steady burning; white
Highly efficient LED light source and lens system
No glare
Aiming facilities provided
