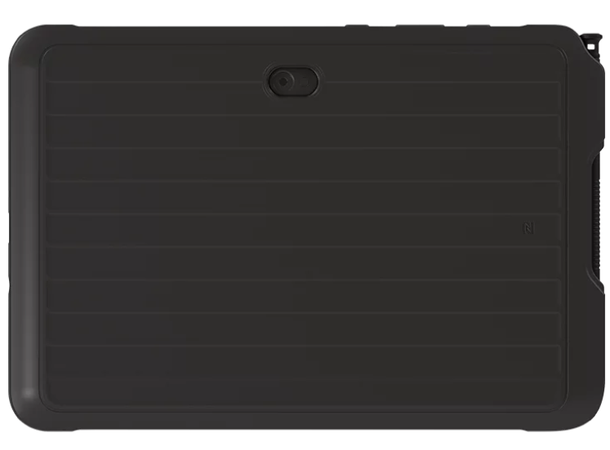

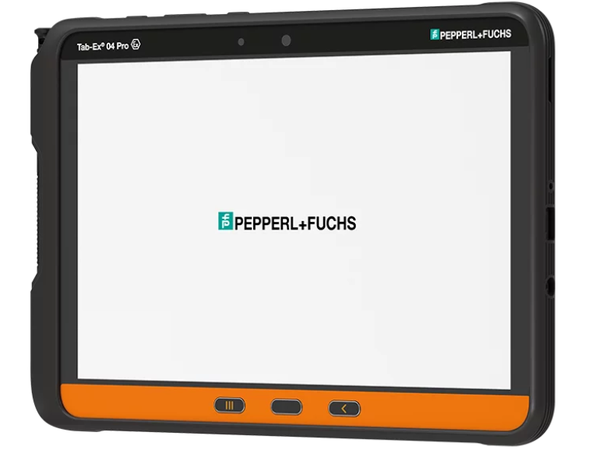

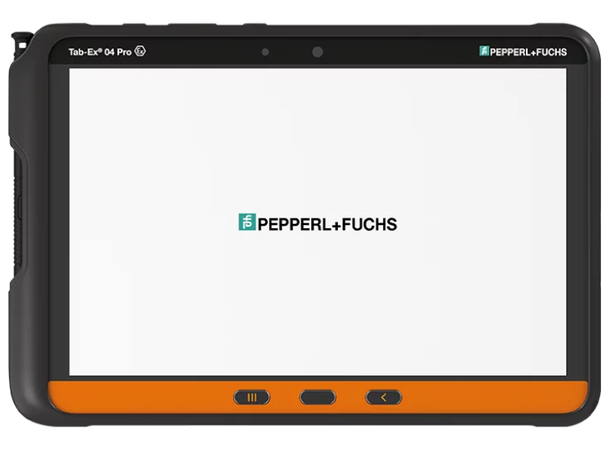

Tab-Ex® 04 Pro DZ2 WiFi 512GB 10.1" Android Tablet Zone 2/22 Tab-Ex® 04 Pro DZ2 WiFi 512GB 10.1" Android Tablet Zone 2/22 Tab-Ex® 04 Pro DZ2 WiFi 512GB 10.1" Android Tablet Zone 2/22

Tab-Ex® 04 Pro DZ2 WiFi 512GB

10.1" Android Tablet Zone 2/22

Varenr: 480992-100025

Ecom developed the Tab-Ex® Pro to keep up with Industry 4.0 and the associated demands on mobile devices. The new tablet enables customers to meet the challenges of digitalization while simplifying the way employees work in increasingly complex environments.

The tablet’s 10-inch screen is perfectly suited for displaying and interacting with interactive, web-based, and augmented reality content and apps, even in hazardous areas. Additionally, the multi-touch display offers good readability in direct sunlight. The tablet can also be operated with gloves and the Samsung S Pen. The Tab-Ex® Pro is lightweight and easy to use despite its large screen and rugged construction.

With ARCore, the Tab-Ex® Pro is designed for augmented reality applications and other Industry 4.0 tasks. This makes the device a useful tool today and for the applications of the future. The device also supports the lone worker concept, which means it can protect employees distributed across a wide geographical area.



Technical Data
Operating SystemAndroid™ 13
ProcessorQualcomm Snapdragon SM7325-2-AB
MemoryRAM: 4 GB
Internal data memory: 64 GB
Compatible with external microSD up to 1 TB
Display 1920 x 1200 pixels (WUXGA),
10.1" (25.66 cm), TFT, LCD 480 Nit brightness;
Operation also possible with gloves / in wet conditions
SensorsAccelerometer, barometer, fingerprint sensor, compass, gyroscope, Hall effect sensor, ambient light sensor, proximity sensor
GPS, NFCYes
Dimension and weight243.5 x 170.2 x 9.9 mm (W x H x D);
approx. 850 g
Ambient temperature-20 °C to +50 °C
ConnectivityWi-Fi 802.11 a/b/g/n/ac/ax 2.4 GHz+5GHz, HE80, MIMO, 1024-QAM
Bluetooth® v5.2 with Low Energy support
USB 3.2 (Type C)
CameraRear: 13 MP with flash; Front: 8 MP
PowerLi-Ion Battery 3.8 V / 7400 mAh / 28.12 WH / Runtime of up to 15 hours
Frequency bandsSupported cellular frequency bands:
4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B20, B28, B66
4G LTE TDD: B38, B40, B41
3G UMTS: B1, B2, B4, B5, B8 2G
GSM: 850 / 900 / 1800 / 1900 MHz
Sim1 x Nano SIM



Ex Certification



ATEX

II 3G Ex ic IIC T5 Gc
II 3D Ex ic IIIB T80°C Dc
Ta= -20°C to +55°C




IECEx

Ex ic IIC T5 Gc
Ex ic IIIB T80°C Dc
Ta= -20°C to +55°C
