• 300 kHz to 6 or 8.5 GHz operation
• High speed, up to 5500 dual-port S-parameters per second
• > 10.000 S11 + S21 per second

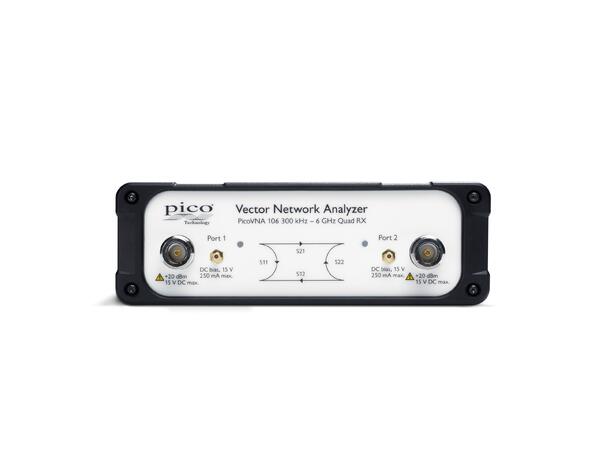

• Quad RX four-receiver architecture for best accuracy

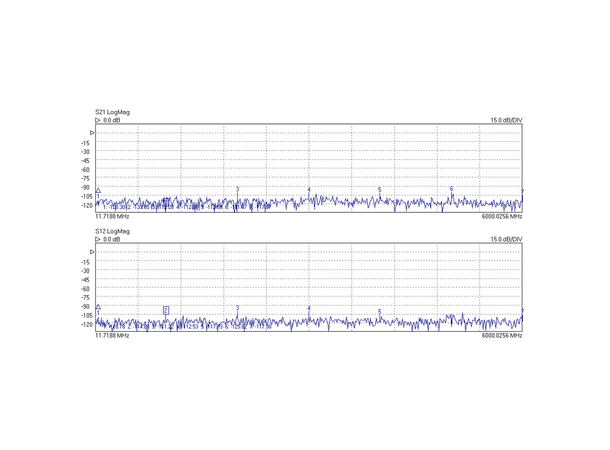

• Up to 124 dB dynamic range at 10 Hz bandwidth
• 0.005 dB RMS trace noise at maximum bandwidth of 140 kHz

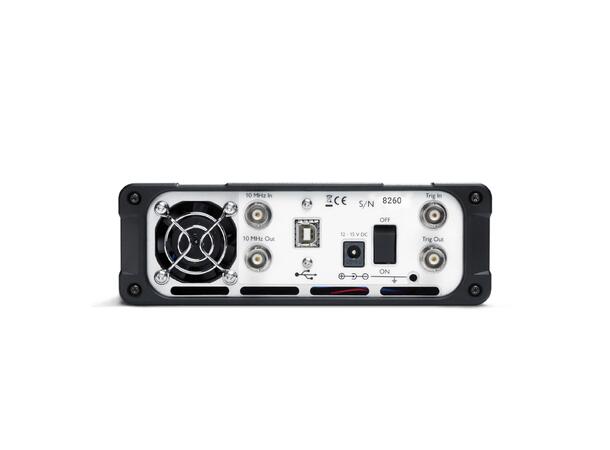

• Half-rack, small-footprint, lightweight package

• Reference plane offsetting and de-embedding
• Time domain and port impedance transformations

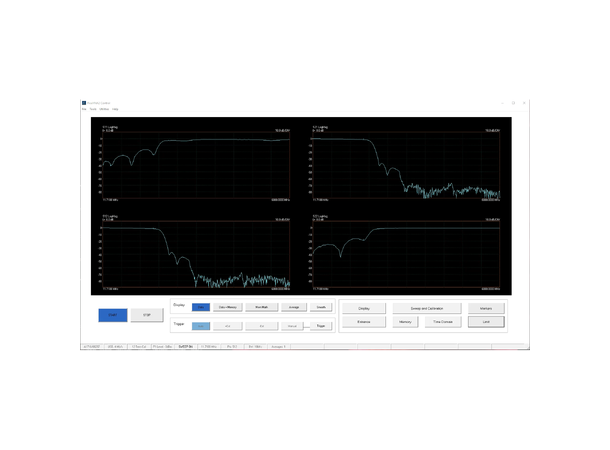

• Multiple live and memory traces on dual y-axis display channels
• Save on trigger for high-speed device profiling (PicoVNA 108)
• Dual-frequency mixer measurements with VSWR correction (PicoVNA 108)

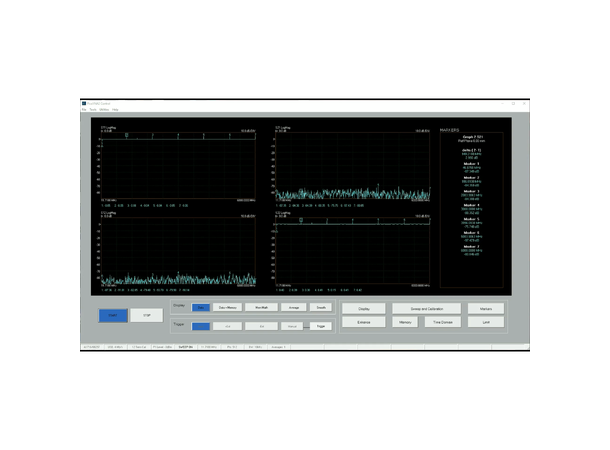

• Phase meter, P1dB, AM to PM, and stand-alone signal generator Utilities

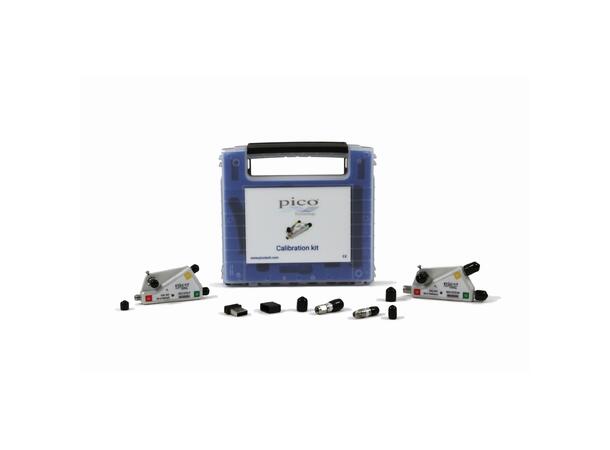

• Male and female SOLT and automated E-Cal calibration standards
• Guided 8/12-term, SOLT, TRL and TRM calibrations including unknown-through

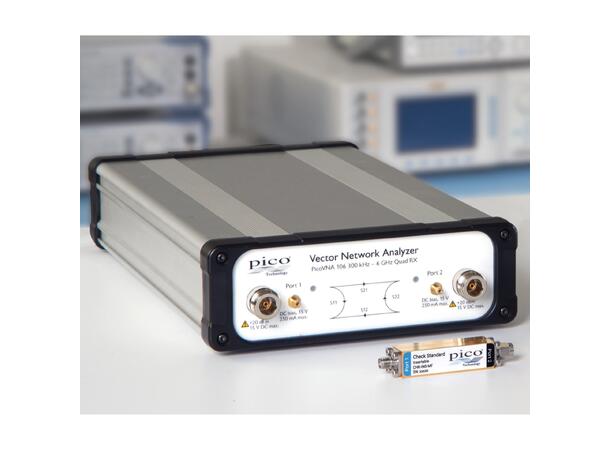

• Confident measurement based on traceable data for all calibration and check standards

Vector network analysis for the many Once the domain of an elite few, microwave measurement has encroached into the lives of scientists, educators, surveyors, inspectors, engineers and technicians alike. Today’s microwave measurements need to be straightforward, portable, accurate, cost-effective, easy to learn and as fast and automated as possible.

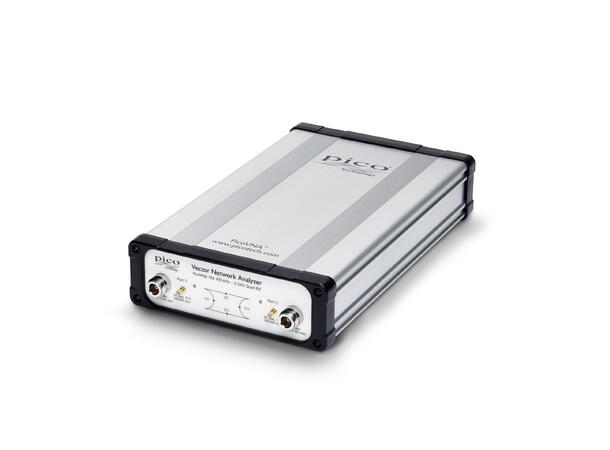

PicoVNAs are all-new, UK-designed, professional USB-controlled, laboratory grade vector network instruments of unprecedented performance, portability and value for money. Despite their simple outline, small footprint and low cost, the instruments boast a four-receiver architecture to minimize the uncorrectable errors, delays and unreliability of internal transfer switches.

The PicoVNA 108 delivers an exceptional dynamic range of 124 dB at 10 Hz (118 dB for the PicoVNA 106) and less than 0.006 dB RMS trace noise at its maximum operating bandwidth of 140 kHz. The instruments can also gather all four S-parameters at each frequency point in just 182 µs (PicoVNA 106) or 189 µs (PicoVNA 108), or S11 + S21 in less than 100 µs. In other words, a 201 point 2-port .s2p Touchstone file in less than 38 ms or up to two .s1p files in less than 20 ms. Their low price makes them cost-effective as deep dynamic range scalar network analyzers or single-port vector reflectometers as well as full-function dual-port, dual-path vector network analyzers. They are affordable in the classroom, in small businesses and even in amateur workshops, yet capable of meeting the needs of all users up to the laboratory or production test technician or the metrology expert.
