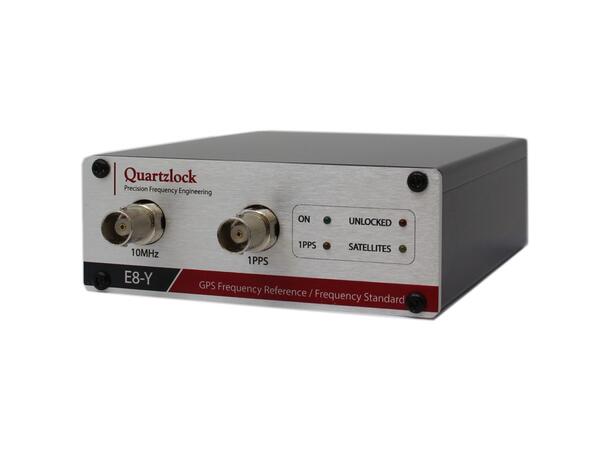

The Quartzlock E8-Y GPS Disciplined OCXO represents a breakthrough in exceptionally low cost, traceable, calibration-free, off-air frequency & time standards. These very low cost references maintain the high frequency & time accuracy required for demanding applications.
Also in the same family there are 1U 19" Rack mount GPS Disciplined instruments the E8000 and E8010 with many options which can be customised to your meet your requirement.
Features
- Low distortion 10MHz Sine & 1PPS outputs
- <1x10-12 accuracy
- No drift
- High stability nationally & internationally
- 1 year warranty
- Lowest cost available
- Very long production life & support. Quartzlock's 2A LF tracking RX (E8-X GPS predecessor) series has been in production for
- >30 years.
Benefits
- No calibration required
- Traceable reference
Applications
- Calibration of counters, frequency meters, spectrum & network analysers
- Synthesizers, & communication analysers
- Reference for: VHF, UHF & PMR TX, CDMA, Tetra, DTV & DAB
- Production test frequency standard
- Network time protocol use in financial, utilities, security & communications timing
- OEM
- Standard for calibration labs, radio workshops, labs and stations
Quality
Quartzlock’s hydrogen maser based laboratory is used in production test & quality assurance to ensure compliance with offset and stability specifications.
Standard Specification:
| Output Frequency | 10 MHz (up to 100 MHz) |
| Output Level | +10 dBm into 50 Ohms |
| 1 PPS Output | 1 |
| Number of Outputs | 1 (up to 12 Outputs available) |
| STS1s | 2x10-12 |
| STS10s | 5x10-12 |
| STS100s | 2x10-12 |
| Phase Noise 1Hz | -110 dBc/Hz |
| Phase Noise 10Hz | -136 dBc/Hz |
| Phase Noise 100Hz | -145 dBc/Hz |
| Phase Noise 1Kz | -155 dBc/Hz |
| Phase Noise 10Kz | -158 dBc/Hz |
| Harmonics dBc | -30 dBc |
| Spurious dBc | -80 dBc |
| Warm Time | 20 min |
| PSU Nominal | 230 V ac |
| PSU Min | 90 V ac |
| PSU Max | 240 V ac |
| Current | 250 mA |
| Supply | AC (or 12 V dc - allows UPS operation) |
| OT Min | -20 C |
| OT Max | +50 C |
| ST Min | -55 C |
| ST Max | +85 C |
