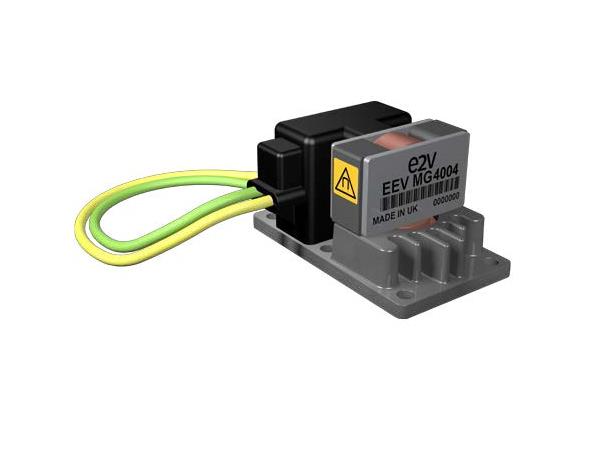

GEN4 X-Band Magnetrons

One of our key products are the new GEN 4 magnetrons. They are available in 4, 6 and 12.5kW and designed to meet new IMO requirements on spurious frequencies. GEN 4 offers the latest magnetron technology, not only to service new radars, but also to service older equipment.
One model to fit them all.

The new GEN 4 magnetron can be installed in almost any radar using the same kW output because of its compact design. If the footprint is different, you can use the simple adapter plate. The magnetron is so light that it can be fitted directly on the circulator without additional support.

Advantages GEN 4
Fully compatible with GEN 2 and GEN 3 magnetrons
Smaller outline than the outline of GEN 2 and GEN 3 magnetrons, avoiding replacements that do not fit.
Mostly a better performance of the GEN 4 magnetron when compared to the original GEN 3 magnetron.
No need to keep a wide range of models in stock, because one of each 4-, 6- or 12.5kW model can service almost every 4-, 6- or 12.5kW radar.
Replaces almost any other magnetron with the same output, using adapter plate A or B.
