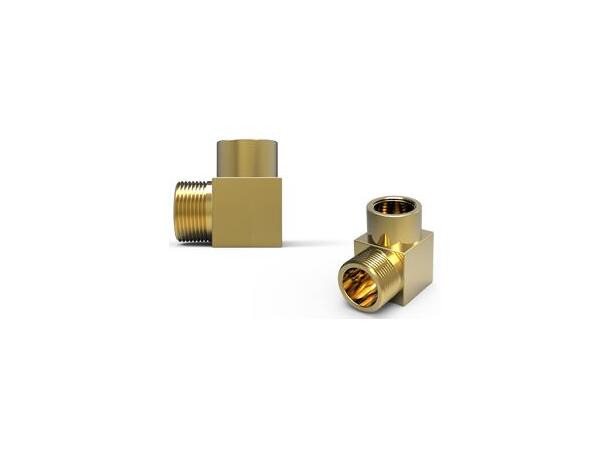

Hawke Reducer 90° (M) 3/4NPT-(FM) M20 NP Exde Angle fixed elbow male to female Hawke Reducer 90° (M) 3/4NPT-(FM) M20 NP Exde Angle fixed elbow male to female

Hawke Reducer 90° (M) 3/4NPT-(FM) M20 NP

Exde Angle fixed elbow male to female

Varunummer: 494/R-3/4N-20NP

Technical Data

Flameproof Exd IIC Gb, Increased Safety Exe IIC Gb and Dust Extb IIIC Db Ex II 2GD.

Certificate No's
Baseefa14ATEX0014U and IECEx BAS 14.0002U.

Suitable for use in:
Zone 1, Zone 2, Zone 21, Zone 22 and mining applications.

Construction and Test Standards:
IEC/EN 60079-0, IEC/EN 60079-1 IEC/EN 60079-7 and IEC/EN 60079-31.

Ingress Protection:
IP66.

Operating Temperature Range:
-60°C to +200°C.

Group II and III.



494 FIXED ELBOW SELECTION TABLE
Male Thread Size Thread Pitch Female Thread Size Thread Pitch Male Thread Length Female Thread Length Typical Block Size
M20 1.5 M20 1.5 15 16 27.0
M25 1.5 M25 1.5 15 16 35.0
M32 1.5 M32 1.5 15 16 42.0
M40 1.5 M40 1.5 15 16 50.0
M50 1.5 M50 1.5 15 16 60.0
M63 1.5 M63 1.5 15 16 78.0
M75 1.5 M75 1.5 15 16 90.0
All dimensions in millimetres.
Note: Different thread sizes and types are permitted at each end of the elbow, a step of one thread size is permitted between the two threads. Where different thread types / sizes are supplied, the overall dimensions of the inline swivel may increase in size.
