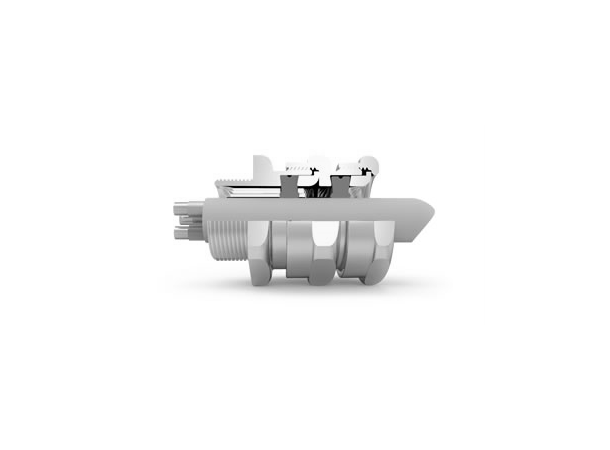

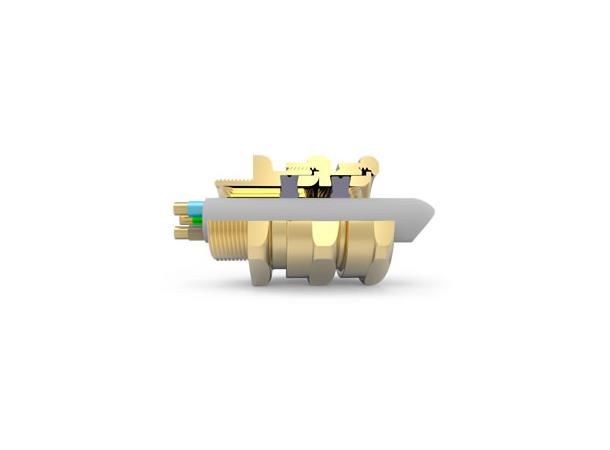

Hawke 501/423 D-M50 Brass Exde (31.5-44.4) Double Seal Hawke 501/423 D-M50 Brass Exde (31.5-44.4) Double Seal

Hawke 501/423 D-M50 Brass

Exde (31.5-44.4) Double Seal

Varunummer: 501/423-DM50SS

Product Details

General

Application Suitable for use in Zone 1, Zone 2, Zone 21 and Zone 22
Ingress Protection IP66, IP67 and IP68 (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X
Material Brass, NP Brass or Stainless Steel
Operating Temperature -60°C to +100 °C
Series Group II Cable Glands

Certifications and Compliance

ATEX File Number CML 19ATEX1167XCML 19.0045X
CSA File Number CSA1015065
Certification
  • IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31
  • UL 60079-0, UL 60079-1, UL 60079-7, , UL 2225
  • CSA 22.2 No: 60079-0, CSA 22.2 No: 60079-1, CSA 22.2 No: 60079-7, CSA 22.2 No: 60079-31
  • ISA 60079-31
Hazardous Rating(s)
  • Flameproof Exdb IIC Gb, Increased Safety Exeb IIC Gb and Dust Extb IIIC Db Ex 2 GD
  • Flameproof AExd IIC Gb, Increased Safety AExe IIC Gb and Dust AExtD Zone 21
  • DTS01





CABLE GLAND SELECTION TABLE
Size
Ref.		 Entry Thread
Size		 Thread
Length
‘H’		 Cable Acceptance Details ‘G’
Compressed
Length		 Hexagon
Dimensions
Outer Sheath ‘B’
Metric NPT
*		 Standard
Seal		 Alternative
(S) Seal		 Across
Flats		 Across
Corners
Standard Option Min. Max. Min. Max.
Os M20 ‡ ½" - 15.0 3.2 8.0 - - 40.0 24.0 26.5
O M20 ‡ ½" - 15.0 6.5 11.9 - - 40.0 24.0 26.5
A M20 ¾" ½" 15.0 10.0 14.3 9.0 13.5 40.4 30.0 32.5
B M25 1" ¾" 15.0 13.0 20.2 9.5 15.4 44.3 36.0 39.5
C M32 1¼" 1" 15.0 19.5 26.5 15.5 21.2 47.2 46.0 50.5
C2 M40 1½" 1¼" 15.0 25.0 32.5 22.0 28.0 49.5 55.0 60.6
D M50 2" 1½" 15.0 31.5 44.4/42.3 † 27.5 34.8 72.5 65.0 70.8
E M63 2½" 2" 15.0 42.5 56.3/54.3 † 39.0 46.5 64.8 80.0 88.0
F M75 3" 2½" 15.0 54.5 68.2/65.3 † 49.5 58.3 68.0 95.0 104.0
G M80 3½" - 20.0 67.0 73.0 - - 68.0 106.4 115.0
H M90 3½" - 20.0 67.0 77.6 - - 68.0 115.0 130.0
J M100 4" - 20.0 75.0 91.6 - - 68.0 127.0 142.0
All dimensions in millimetres (except * where dimensions are in inches).
Os - F size metric entry threads are 1.5mm pitch as standard. For G size Cable Glands and above, a 2mm pitch is supplied as standard (1.5mm pitch with 15mm length of thread can be supplied) please specify when ordering.
† Smaller value is applicable when selecting reduced NPT entry option.
‡ Sizes Os and O are available with an M16 thread size. For O size with M16 thread, the maximum cable outer sheath diameter is 10.9 mm.
