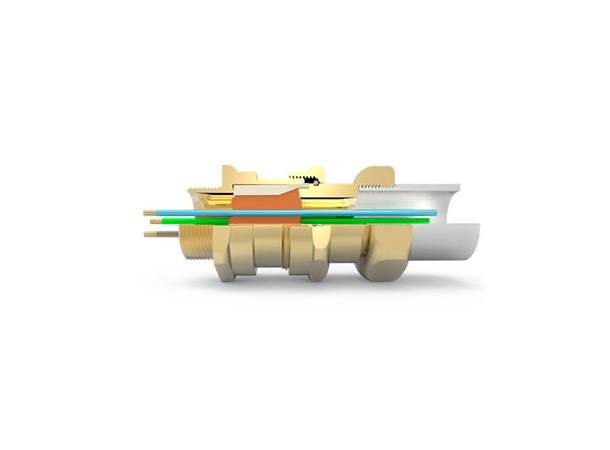

Hawke CSB656 (M) F-M75 (FM) M75 SS
Exde (B59.0-E66.2) w/Compound
Product Details
General
Application
Suitable for use in Zone 1, Zone 2, Zone 21 and Zone 22 and in Gas Groups IIA, IIB and IIC. Explosion-proof Class 1 Division 2 Groups ABCD, Class II Division 2 Groups EFG, Class III
Ingress Protection
IP66, IP67 and IP68 (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X
Material
Brass, NP Brass or Stainless Steel
Operating Temperature
-60°C to +80 °C
Series
Group II Cable Glands
Certifications and Compliance
ATEX File Number
CML19ATEX1170X, and IECEx CML19.0048X
CSA File Number
CSA1015065 for Marine Shipboard Cable
Certification
IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31
UL 60079-0, UL 60079-1, UL 60079-7, UL 2225
CSA 22.2 No: 60079-0, CSA 22.2 No: 60079-1, CSA 22.2 No: 60079-7, CSA 22.2 No: 60079-31
ISA 60079-31
Hazardous Rating(s)
Flameproof Exdb IIC Gb, Increased Safety Exeb IIC Gb and Dust Extb IIIC Db Ex II 2 GD
Flameproof AExd IIC Gb, Increased Safety AExe IIC Gb and Dust AExtD Zone 21
Deluge Protection to DTS01
CABLE GLAND SELECTION TABLE
Size
Ref.
Entry Thread
Size
Inner Sheath / Cores
‘G’
Metric
Hexagon
Dimensions
Male
Female
Metric
NPT*
Metric
NPT*
Max. Over
Cores
'B'
Max. Inner
Sheath
'E'
Max. No. of
Cores
Across
Flats
Across
Corners
Standard
Option
Standard
Option
A
M20
¾"
½"
M20
¾"
½"
11.0
12.5
15
74
30.0
32.5
B
M25
1"
¾"
M25
1"
¾"
16.2
18.4
30
65
36.0
39.5
C
M32
1¼"
1"
M32
1¼"
1"
21.9
24.7
42
80
46.0
50.5
C2
M40
1½"
1¼"
M40
1½"
1¼"
26.3
29.7
60
83
55.0
60.6
D
M50
2"
1½"
M50
2"
1½"
37.1
41.7
80
94
65.0
70.8
E
M63
2½"
2"
M63
2½"
2"
47.8
53.5
100
97
80.0
88.0
F
M75
3"
2½"
M75
3"
2½"
59.0
66.2 / 65.3¹
120
100
95.0
104.0
'T' — All dimensions in millimetres (except * where dimensions are in inches). Metric entry threads are 1.5mm pitch as standard, 15mm length of thread.
¹ Smaller value is applicable when selecting reduced NPT male entry option. Hexagon dimensions as shown may alter.
Tilbehør
Hawke Nylon Sealing Washer F-M75
Hawke Earth Tag F-M75 SS
Hawke Locknut F-M75 St. Steel
Hawke Serrated Washer F-M75 St. Steel
