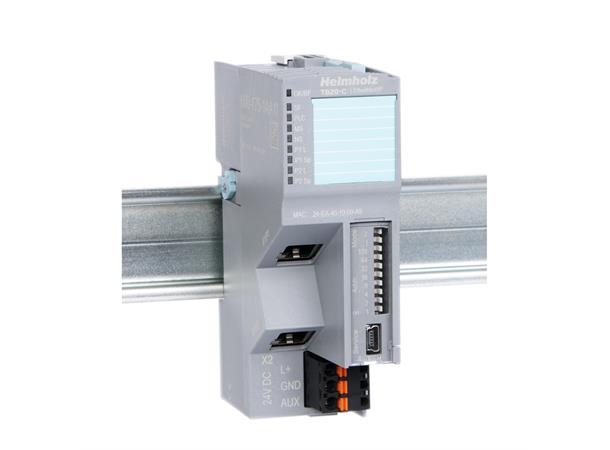

Helmholz TB20-C Bus Coupler EtherNet/IP bus coupler

Helmholz TB20-C Bus Coupler

EtherNet/IP bus coupler

Varunummer: 600-175-1AA11

The EtherNet/IP bus coupler makes it possible to access data from peripheral modules using the EtherNet/IP protocol. It can accommodate up to 64 modules of any kind connected in series with the bus coupler.
The EtherNet/IP bus coupler features an integrated two-port switch that allows for star and line topology configurations.
A large I/O image table size of one kbyte makes it possible to implement comprehensive and complex systems.
TB20 ToolBox can be used to easily configure the system and the various module parameters and transfer the corresponding settings to the coupler.
A functioning TB20 configuration will always require a bus coupler and at least one peripheral module. The bus coupler supports hot-swapping for replacing modules during operation.

A functioning TB20 configuration will always require a bus coupler and at least one peripheral module. The bus coupler supports hot-swapping for replacing modules during operation.

Scope of delivery: Bus coupler Ethernet/IP, 24 V power supply connector, bus cover element, base module

Dimensions (DxWxH): 73 x 35 x 110 mm



Modules can be replaced during operation (hot-swapping)
24 VDC power supply
Integrated power supply unit for powering peripheral modules (2.5 A)
Supplies the system’s I/O voltage (24 VDC)
USB device port for online diagnostics, configuring parameters, setup, and firmware updates with "TB20 ToolBox"
TB20 ToolBox simulation for commissioning the I/O system without a higher-level controller in order to test the functionality (I/O check)
Concealed "factory reset" switch for restoring the module to its factory settings
Supports unicast and multicast
CIP connections
511 bytes of input assembly data, 511 bytes of output assembly data
TB20 ToolBox can be used for easy access to assembly sizes and to the structure of the memory image within the assemblies
Up to 64 peripheral modules
Implicit messaging (transport class 1)
Explicit messaging (transport class 3)
TCP watchdog
IP address can be set relative to a base IP address by using a DIP switch that can be covered
DHCP (can be selected using DIP switch)
Integrated 2-port switch with 2 x RJ45 connectors
Module process data is automatically assigned to the EtherNet/IP mapping
