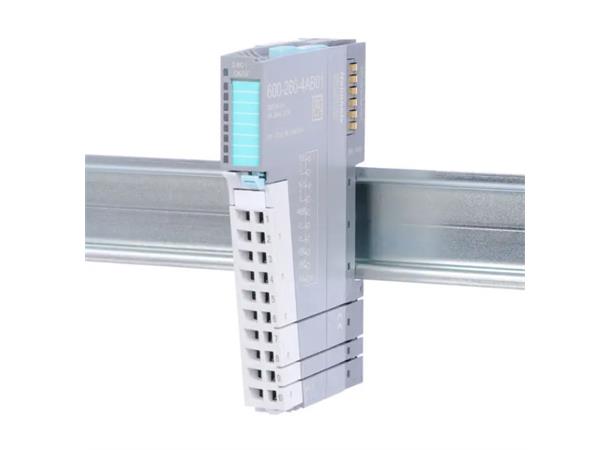

AO 2x I, 0/4-20 mA, 12 Bit
Parameters for the module
- Diagnostic alarm: On | Off
- Representation values: SIMATIC* S7 | SIMATIC* S5 | INT16
Parameters for each channel
- Wire break detection: On | Off
- Output range: 0 ... 20 mA | 4 ... 20 mA
- Substitute value functionality: Outputs de-energized | Retain last value | Apply substitute value
- Substitute value: 16 bit analog value (±27648)
