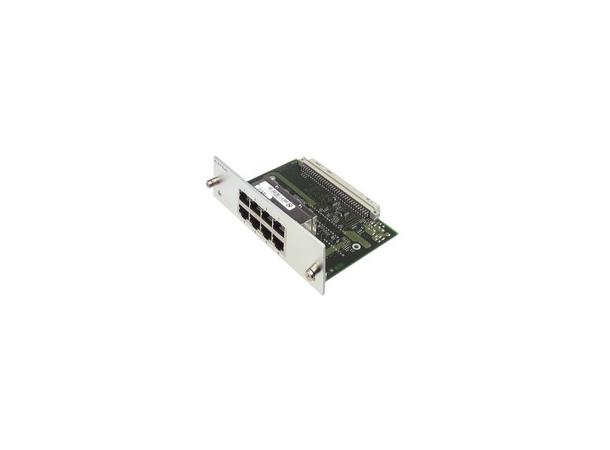

Hirschmann M1-8TP-RJ45 module 8x10/100 Media Module for GRS103

Hirschmann M1-8TP-RJ45 module 8x10/100

Media Module for GRS103

Varunummer: 943 970-001

Product description

Description8 x 10/100BaseTX RJ45 port media module for modular, managed, Industrial Workgroup Switch MACH102
TypeM1-8TP-RJ45
Order No.943 970-001

Network size - length of cable

Twisted pair (TP)0 m ... 100 m

Power requirements

Power consumption2 W

Ambient conditions

Operating temperature0 ºC ... 50 ºC
Storage/transport temperature-20 ºC ... 85 ºC
Relative humidity (non-condensing)10 % ... 95 %
MTBF169.95 years (MIL-HDBK-217F)

Mechanical construction

Dimensions (W x H x D)138 x 90 x 42
MountingMedia Module
Weight210 g
Protection classIP20

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80-2700 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 4 kV data line
EN 61000-4-6 conducted immunity10 V (150 kHz-80 MHz)

EMC emitted immunity

FCC CFR47 Part 15FCC 47 CFR Part 15 Class A
EN 55022EN 55022 Class A

Approvals

Safety of industrial control equipmentcUL 508

Scope of delivery and accessories

Scope of deliveryMedia module, user manual
