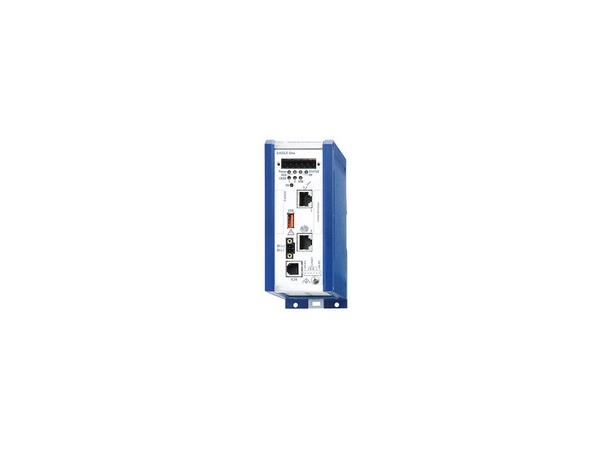

Hirschmann EagleOne Firewall
Hirschmann EagleOne Firewall
EAGLEOne-0200T1S2SDDU90000HHE
Varunummer:
EAGLEONE-0200T1S2-02
Förfrågan
Beskrivning
Dokumentasjon
Product description
Description
Industrial firewall and security router with extensive Layer 2 and Layer 3 redundancy features, DIN rail mounted, fanless design.
Port type and quantity
2 ports in total, Ports Fast Ethernet: 2 x 10/100 Mbit/s
More Interfaces
V.24 interface
1 x RJ11 socket
USB interface
1 x USB to connect auto-configuration adapter ACA21-USB
Digital Input
1 x plug-in terminal block, 2-pin
Signaling contact
1 x plug-in terminal block, 6-pin
Network size - length of cable
Twisted pair (TP)
0-100 m
Single mode fiber (SM) 9/125 µm
0 - 30 km, 16 dB link budget at 1300 nm, A = 0.4 dB/km, 3 dB reserve, D = 3.5 ps/(nm x km)
Network size - cascadibility
Line - / star topology
any
Power requirements
Operating Voltage
12/24/48 V DC/24V AC (redundant)
Power consumption
8.1 W
Redundancy functions
Use in redundant networks/ring coupling, Firewall redundancy (layer 4)
Security features
Multipoint VPN
Point to point, point to multipoint, remote enable/disable or via digital input, IPSec, IKEv1/v2, 3DES, AES (-128, -192, -256), Pre-Shared Key, X.509v3 certificates, MD5, SHA-1, NAT-T, Address Mapping, Hub and Spoke
Stateful inspection firewall
Firewall rules (incoming/outgoing, modem access, management), DoS prevention, MAC filter, user firewall for external activation of FW rules
Software
Management
SSHv1, SSHv2, SNMP v1/v2/v3, HTTPS, SFTP, V.24, Access to management restricted by VLAN, Restricted management access, Remote authentication via RADIUS, Password change on first login
Diagnostics
LLDP, LEDs (status, VPN, redundancy, link status, data, ACA), Signal contact, logfile, Syslog, configuration check
Configuration
Command Line Interface (CLI), WEB based management, Automatic configuration undo (roll-back), Text based configuration file (XML), HiDiscovery, HiView, Industrial HiVision
Time synchronisation
NTP/SNTP
Routing
Static unicast routing, Multinetting, 1-to-1 NAT, IP masquerading, Port forwarding, Double NAT
Ambient conditions
Operating temperature
0-+60 °C
Storage/transport temperature
-40-+85 °C
Relative humidity (non-condensing)
10-95 %
Mechanical construction
Dimensions (WxHxD)
60 mm x 145 mm x 125 mm
Weight
660 g
Mounting
DIN rail
Protection class
IP20
Mechanical stability
IEC 60068-2-6 vibration
1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock
15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)
4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field
10 V/m (80-3000 MHz)
EN 61000-4-4 fast transients (burst)
2 kV power line, 4 kV data line
EN 61000-4-5 surge voltage
power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 Conducted Immunity
3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EMC emitted immunity
EN 55032
EN 55032 Class A
FCC CFR47 Part 15
FCC 47CFR Part 15, Class A
Approvals
Basis Standard
CE, FCC, C-Tick, EN 61131, EN 60950
Shipbuilding
GL - Germanischer Lloyd
Scope of delivery and accessories
Accessories
Rail power supply RPS 30, RPS 80 EEC, RPS 120 EEC, terminal cable, network management Industrial HiVision, auto-configuration adpater ACA21-USB EEC, 19" installation frame
Scope of delivery
Device, terminal block, General safety instructions
