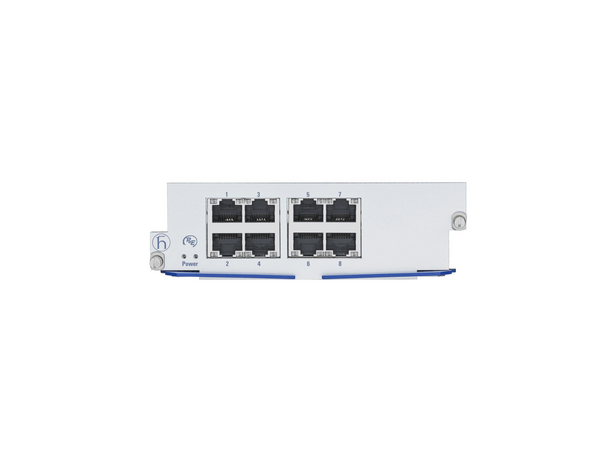

Greyhound GMM42 Module 8xRJ45 Gbit PoE GMM42-TTTTTTTTSV9HHS999.9.99

Greyhound GMM42 Module 8xRJ45 Gbit PoE

GMM42-TTTTTTTTSV9HHS999.9.99

Varunummer: GMM42-TTTTTTTTSV9HHS
Product description
DescriptionGREYHOUND1042 Gigabit Ethernet media module PoE/PoE+ support (PoE power supply required)
Port type and quantity8 ports FE/GE ; all copper ports support PoE/PoE+ ; 2x FE/GE, RJ45 ; 2x FE/GE, RJ45 ; 2x FE/GE, RJ45 ; 2x FE/GE, RJ45
Network size - length of cable
Twisted pair (TP)port 1 and 3: 0-100 m; port 5 and 7: 0-100 m; port 2 and 4: 0-100 m; port 6 and 8: 0-100 m;
Power requirements
Operating Voltagevia switch
Power consumption5.5 W
Power output in BTU (IT)/h19
Ambient conditions
MTBF (Telecordia SR-332 Issue 3) @ 25°C4 067 165 h
Operating temperature0-+60 °C
Storage/transport temperature-40-+70 °C
Relative humidity (non-condensing)5-95 %
Mechanical construction
Weight510 g
Mechanical stability
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field35 V/m (80-2700 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst)4 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line); data line: 1 kV; IEEE1613: power line 5kV (line/earth)
EN 61000-4-6 Conducted Immunity3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EN 61000-4-16 mains frequency voltage30 V, 50 Hz continous; 300 V, 50 Hz 1 s
EMC emitted immunity
EN 55032EN 55032 Class A
Approvals
Safety of industrial control equipmentEN61131, EN60950
SubstationIEC61850, IEEE1613
Reliability
Guarantee60 months (please refer to the terms of guarantee for detailed information)
Scope of delivery and accessories
Scope of deliveryDevice, General safety instructions
