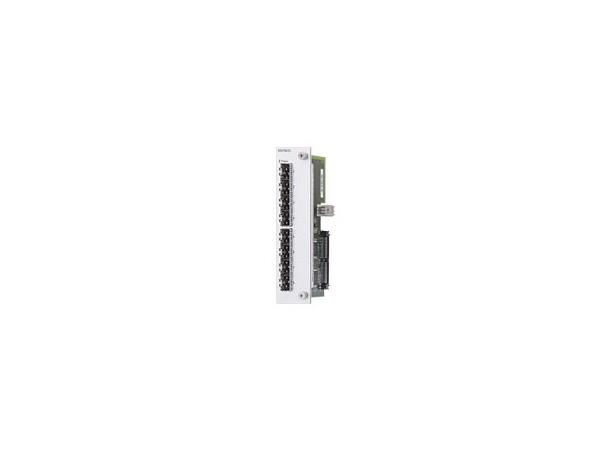

RSPM module 4xRJ45, 4xSFP
RSPM module 4xRJ45, 4xSFP
RSPM20-4T14Z6SVUHHS
Varunummer:
RSPM20-4T14Z6SVUHHS
Förfrågan
Beskrivning
Dokumentasjon
Product description
Description
Fast Ethernet media module for RSPE Switches
Port type and quantity
8 Fast Ethernet ports in total: 4 x SFP slot and 4x RJ45
Network size - length of cable
Twisted pair (TP)
0-100 m
Single mode fiber (SM) 9/125 µm
see SFP modules
Single mode fiber (LH) 9/125 µm (long haul transceiver)
see SFP modules
Multimode fiber (MM) 50/125 µm
see SFP modules
Multimode fiber (MM) 62.5/125 µm
see SFP modules
Power requirements
Operating Voltage
power supply via RSPE32-xx or RSPE37-xx switch variant
Power consumption
8 W
Ambient conditions
Operating temperature
0-+60 °C
Storage/transport temperature
-40-+70 °C
Relative humidity (non-condensing)
10-95 %
Mechanical construction
Weight
220 g
Protection class
IP20
Mechanical stability
IEC 60068-2-6 vibration
1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock
15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)
8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field
35 V/m (80-2700 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst)
4 kV power line, 4 kV data line
EN 61000-4-5 surge voltage
power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line IEEE1613: power line 5 kV (line/earth)
EN 61000-4-6 Conducted Immunity
3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EN 61000-4-16 mains frequency voltage
30 V, 50 Hz continous; 300 V, 50 Hz 1 s
EMC emitted immunity
EN 55022
EN 55032 Class A
FCC CFR47 Part 15
FCC 47CFR Part 15, Class A
Approvals
Basis Standard
CE, FCC, RCM, EN61131
Safety of industrial control equipment
EN60950, UL61010-1/-2-201
Shipbuilding
GL - Germanischer Lloyd
Substation
IEC61850-3, IEEE1613
Scope of delivery and accessories
Scope of delivery
Device
