Spider III Standard Line,100mbit 8-port
SPIDER-SL-20-08T1999999TZ9HHHH
Product description
Description
Unmanaged, Industrial ETHERNET Rail Switch, fanless design, store and forward switching mode , Fast Ethernet
Port type and quantity
8 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity
More Interfaces
Power supply/signaling contact
1 x plug-in terminal block, 3-pin
Network size - length of cable
Twisted pair (TP)
0 - 100 m
Network size - cascadibility
Line - / star topology
any
Power requirements
Current consumption at 24 V DC
Max. 63 mA
Operating Voltage
12/24 V DC (9.6 - 32 V DC)
Power consumption
Max. 1.5 W
Power output in BTU (IT)/h
5.3
Diagnostics features
Diagnostic functions
LEDs (power, link status, data, data rate)
Ambient conditions
MTBF
2.218.157 h (Telcordia)
Operating temperature
-40-+70 °C
Storage/transport temperature
-40-+85 °C
Relative humidity (non-condensing)
10 - 95 %
Mechanical construction
Dimensions (WxHxD)
38 x 102 x 79 mm (w/o terminal block)
Weight
150 g
Mounting
DIN rail
Protection class
IP30 plastic
Mechanical stability
IEC 60068-2-6 vibration
3.5 mm, 5–8.4 Hz, 10 cycles, 1 octave/min 1 g, 8.4–150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock
15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)
4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field
10V/m (80 – 3000 MHz)
EN 61000-4-4 fast transients (burst)
2 kV power line, 4 kV data line 2kV power line; 4kV data line (SL-40-08T only 2kV data line)
EN 61000-4-5 surge voltage
power line: 2kV (line/earth), 1kV (line/line); 1kV data line
EN 61000-4-6 Conducted Immunity
10V (150 kHz - 80 MHz)
EMC emitted immunity
EN 55022
EN 55032 Class A
FCC CFR47 Part 15
FCC 47CFR Part 15, Class A
Approvals
Basis Standard
CE, FCC, EN61131
Scope of delivery and accessories
Accessories
Rail Power Supply RPS 30/80 EEC/120 EEC (CC), Wall mounting plate for DIN rail mounting (width 40/70 mm)
Scope of delivery
Device, terminal block, safety instruction
Tilbehør
Alternativer
Artikler
Antall artikler funnet:
Kundcenter
Sitemap
Favoriter
Logga in
Inga varor i varukorgen
Ingen varer i ordreboka
produkt
produkter
(
)
(
)
(
)
Checka ut
×
Aktiv leveringsdato
Leveringsdatoer
Kundvagn
varor i kundvagnen
Klikk her for å se alle
Handlevognen er tom.
Søk
Her er du nå:
Adeptor
>
Industriell IT
>
Nätverk Industri
>
Spider
>
Hirschmann
>

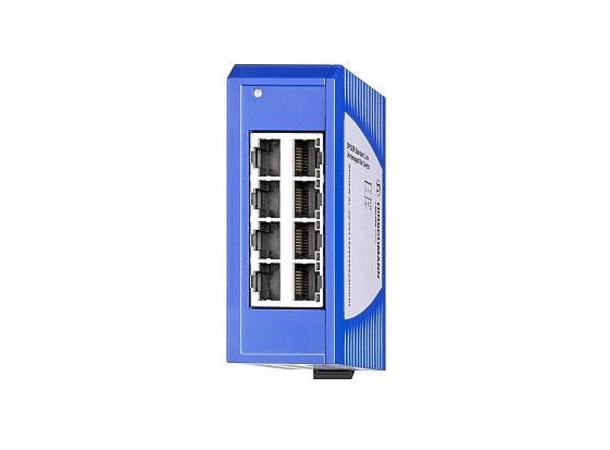

Spider III Standard Line,100mbit 8-port
