Meinberg LANTIME M200/PZF
Key Features
- Synchronization of NTP and SNTP compatible clients
- Web based status and configuration interface (Demo) and console based graphical configuration utility
- Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP
- USB Port for installing firmware updates, locking frontpanel menu access and backup/restore of configuration and log files
- Incl. DCF77 outdoor antenna AW02. Antenna can be connected with up to 300m of standard coaxial cable RG58
Characteristics
Type of receiver: Built-in DCF77 PZF correlation receiver PZF511. Capable of receiving the DCF77 signal in large parts of Europe.
Type of antenna: DCF77 outdoor antenna AW02

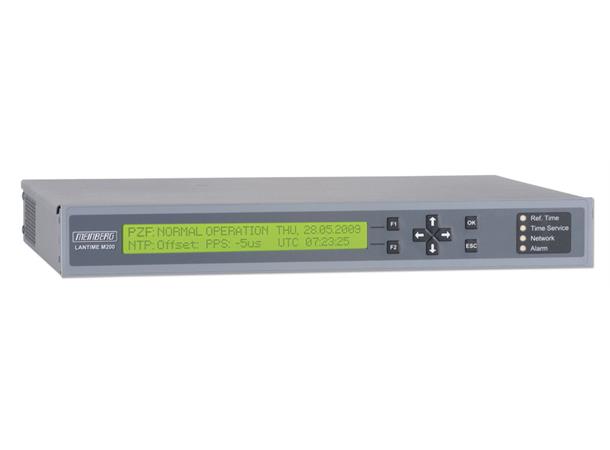

Display: LC-display, 2 x 40 characters, with backlight
Control elements: Eight push buttons to set up basic network parameters and to change receiver settings
Status info: Four bicolor LEDs showing status of:
- reference time
- time service
- network
- alarm
Network Interface: RJ-45 Network Connection 10/100 MBit
Power supply: 85-264VAC (50/60Hz)
Power consumption: 20W
Universal Serial Bus (USB) Ports: 1x USB Port in rear panel:
- install firmware upgrades
- backup and restore configuration files
- copy security keys
- lock/unlock front keys
Single-Board-Computer: i386 compatible 500Mhz CPU, 128 MB RAM
Operating System of the SBC: Linux with nano kernel (incl. PPSkit)
Network protocols OSI Layer 4 (transport layer): TCP, UDP
Network protocols OSI Layer 7 (application layer): TELNET, FTP, SSH (incl. SFTP, SCP), HTTP, HTTPS, SYSLOG, SNMP
Internet Protocol (IP): IP v4, IP v6
Network Autoconfiguration Support: IPv4: Dynamic Host Configuration Protocol - DHCP (RFC 2131)
IPv6: Autoconfiguration Networking - AUTOCONF
Network Time Protocol (NTP): NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (no RFC)
SNTP v3 (RFC 1769), SNTP v4 (RFC 2030)
MD5 Authentication and Autokey Key Management
Time Protocol (TIME): Time Protocol (RFC 868)
Daytime Protocol (DAYTIME): Daytime Protocol (RFC 867)
IEC 61850: Synchronization of IEC 61850 compliant devices by using SNTP
Hypertext Transfer Protocol (HTTP): HTTP/HTTPS (RC 2616)
Secure Shell (SSH): SSH v1.3, SSH v1.5, SSH v2 (OpenSSH)
Telnet: Telnet (RFC 854-RFC 861)

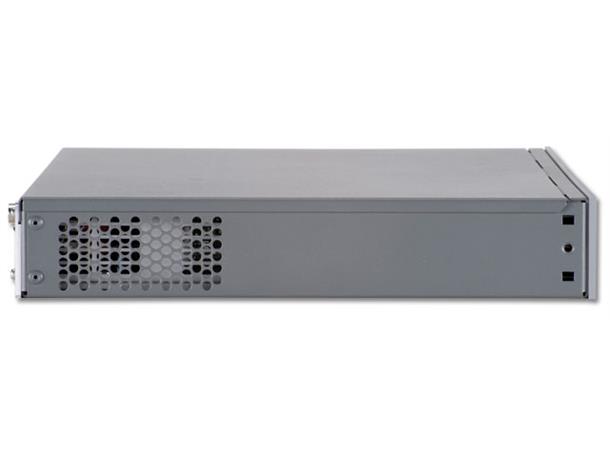

Form Factor: Desktop housing (335 x 45 x 240 mm)
Ambient temperature: 0 ... 50°C / 32 ... 122°F
Humidity: Max. 85%
Scope of supply: The system will be delivered inclusive of DCF77 outdoor antenna, mounting kit and 10m coax-cable RG58.
Technical Support: Meinberg offers free lifetime technical support via telephone or e-mail.
Warranty: Three-Year Warranty
Firmware Updates: Firmware is field-upgradeable, updates can be installed directly at the unit or via a remote network connection.
Software updates are provided free of charge, for the lifetime of your Meinberg product.
