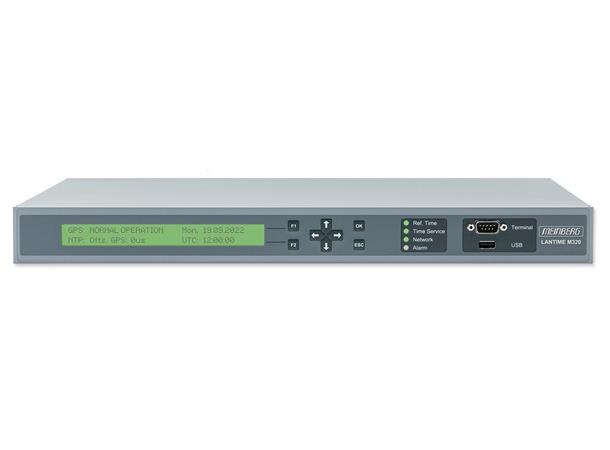

The Meinberg LANTIME M320 time server is used to provide highly accurate time to networks of all sizes. They synchronise all systems that are either NTP or SNTP compatible. As a reference time source, this NTP system typically use a built-in Meinberg reference clock or a compatible external time source (operating in stratum 1 mode). Up to 7 external NTP servers can also be set as time reference (operation as stratum 2 server).

NTP Time Server in 19" Slimline Housing
Multi-GNSS (GPS, GLONASS, Galileo, BeiDou) satellite receiver
incl. GNSS antenna and 20m antenna cable Belden H155
Redundant Power Supply: 2x 100-240 V AC / 100-200 V DC (easily replaceable)
Signal Outputs:
2 x LAN interface 10/100 MBit, RJ45 connector
2 x RS232 interface, independent, 9pin D-Sub female connector, with multi data formats timestrings.
1 x PPS, TTL into 50 ohm, pulse duration 200 msec, active high, female BNC connector
1 x Standard Frequency 10 MHz, TTL into 50 ohm, female BNC connector
1 x Alarm Relay Output, change-over contact, 3pin DFK connector
