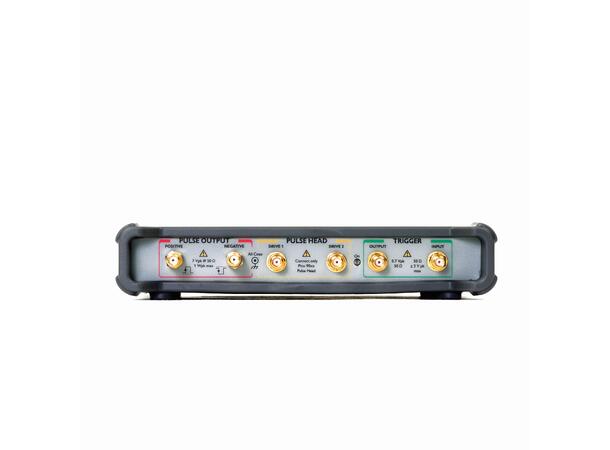

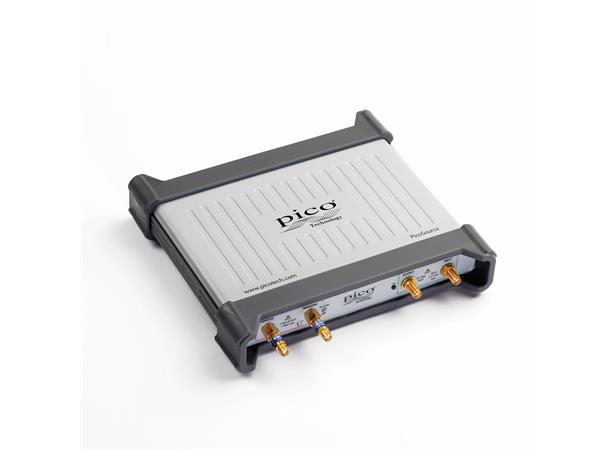

Pico Technology PicoSource

PG911 and PG914

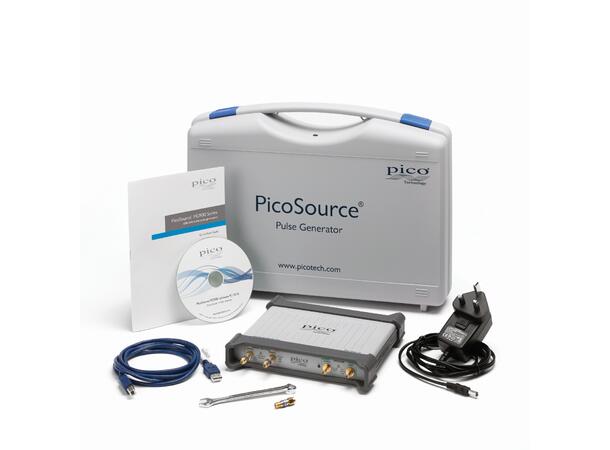

• Integral 50 O SMA(f) Step Recovery Diode outputs
• < 60 ps transition time
• Dual 2.5 to 6 V variable amplitude outputs
• ±1 ns in 1 ps steps timing deskew
• 200 ns to 4 µs pulse width
• 1 µs to 1 s internal clock period
• ?< 3 ps RMS jitter relative to external trigger
• –20 dB 10 GHz SMA(m-f) attenuator included with Step Recovery Diode outputs

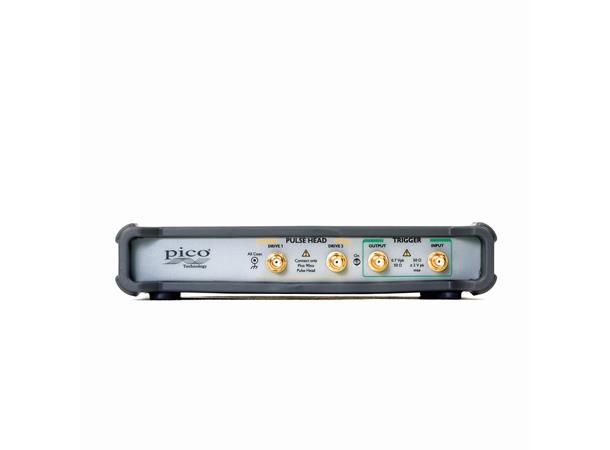

PG912 and PG914

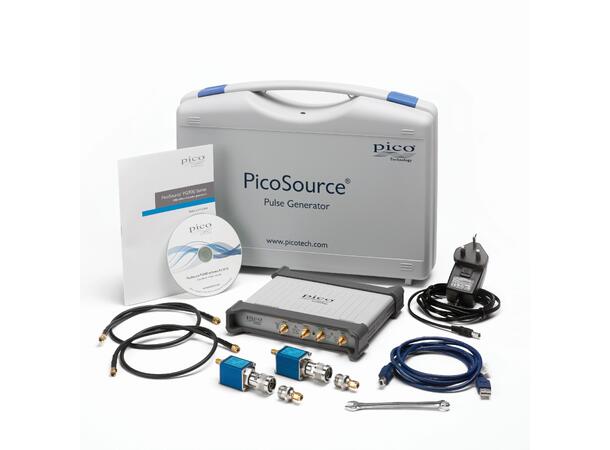

• External 50 O N(m) positive and negative Tunnel Diode pulse heads
• < 40 ps transition time
• Dual > 200 mV fixed amplitude outputs
• ?±200 ps in 1 ps steps timing deskew
• Inter-series N(f) – SMA(m) adapter included with Tunnel Diode pulse heads

The fast-transition pulse can stimulate a transmission path, device or network with a broad spectrum signal in a single instant. Such a pulse is very useful for many of the high-speed broadband measurements that we need to make; for instance in time-domain reflectometry, semiconductor test, gigabit interconnect and port test and in radar.

Differential high-speed data in particular dominates the measurement challenge in our digital, computing, interconnect and telecommunications systems. Surprisingly, cost-effective fast-transition differential pulse generators have been very hard to find ... until now!

Typical applications include:

• TDR/TDT network and match analysis
• Spectral and flatness measurements
• Timing, jitter and crosstalk determinations
• The PG900 Pulse Generators can partner the PicoScope 9300 20 GHz Sampling Oscilloscope in many of these applications.
