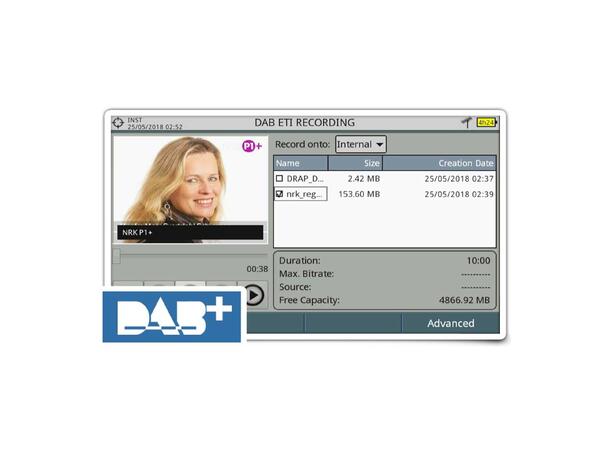

ETI recording
ETI stands for Ensemble Transport Interface and it may be described as the equivalent to the Transport Stream for DAB. It is possible to record ETI on the analyzer so that it can then be copied to an external device for further analysis.

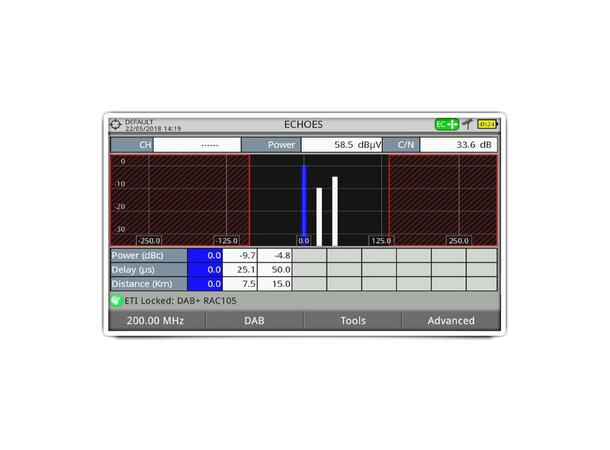

Dynamic echoes analysis
DAB can also be operated in a Single Frequency Network (SFN) and therefore the dynamic echoes analysis becomes a useful function to have.

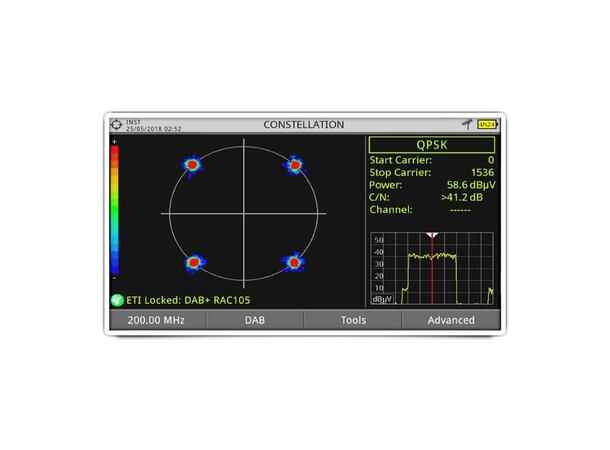

DAB constellation diagram
DAB uses DQPSK modulation and so its constellation diagram shows a cloud of dots clustered around four points.

Measurements Audio decoding
Besides its advanced functionalities, the analyzer can also measure all the basic quality parameters and decode the audio.

Slideshow
It is a slowly refreshed sequence of still frames containing information about the songs being played or traffic advisories. Slideshow is displayed in different menus on the analyzer along with other information

And more...
MSC, FIC and FIB. It provides separate CBER measurements for the FIC (Fast Information Channel) and the MSC (Main Service Channel). Also related to the FIC CBER it includes the Fast Information Block ratio or FIB ratio.

MER by carrier and Merogram are also included in this Advanced DAB measurement option.
