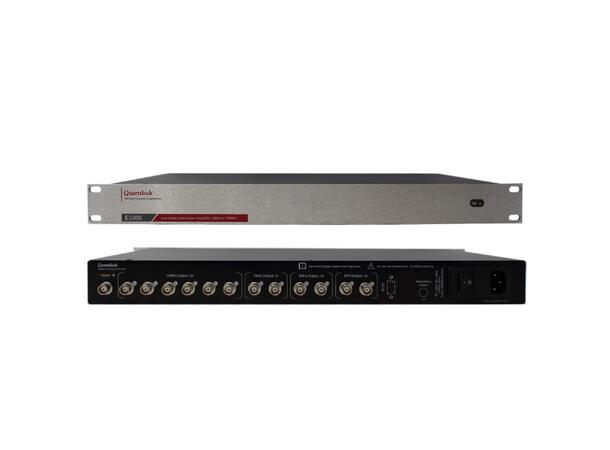

Quartzlock E5000 distribution amplifier Low Noise Distribution Amplifier

Quartzlock E5000 distribution amplifier

Low Noise Distribution Amplifier

Varunummer: E5000

The Quartzlock E5000 is a 1U, 1 input, 12 output, low-cost, distribution amplifier

Features

  • Compact design
  • <-132dBc/Hz @ 1Hz phase noise
  • 90dB @ 10MHz Isolation
  • Excellent short-term stability & phase noise
  • Benefits

Unity gain

  • +0dBm to +13dBm
  • High stability
  • Low distortion
  • High isolation
  • Applications

Industrial calibration laboratories

  • Telecoms
  • Test solutions
  • RF test bench
  • Production test

Standard Specification:

Output Frequency  Range: 1 MHz to 100 Mhz
Output Level  +12 dBm Max into 50 Ohms
Number of Outputs  12 Sinewave
STS1s 2x10-13
STS10s  2x10-14
STS100s 5x10-15
Phase Noise 1Hz  < -132 dBc/Hz
Phase Noise 10Hz < -144 dBc/Hz
Phase Noise 100Hz < -153 dBc/Hz
Phase Noise 1Kz < -158 dBc/Hz
Phase Noise 10Kz < -160 dBc/Hz
Harmonics dBc < -50 dBc
Spurious dBc < -100 dBc
PSU Nominal  230 V ac
PSU Min 90 V ac
PSU Max  240 V ac
Supply AC
