DAQ6510 Data Acquisition and Logging, Multimeter System
Creating a new level of simplicity, the DAQ6510 has a touchscreen user interface that enables faster setup time, real time monitoring of test status, and detailed data analysis on the instrument.
Key Features
• Large, 5-inch (12.7 cm) multi-touch capacitive touchscreen with graphical display
• 2-year specified, full featured, traceable 6½-digit multimeter with 0.0025% DCV (1 V, 10 V ranges) basic accuracy

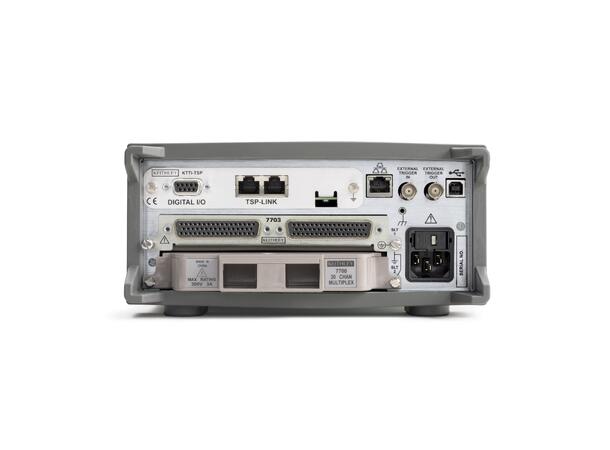

• Standard LAN/LXI and USB-TMC communication interfaces
• Optional interfaces include GPIB, RS-232, and TSP-Link® Technology
• 12 different switch, RF, and control modules to connect to as many as 80 DUTs in one test setup
• Up to 80 2-pole channels of thermocouple, RTD, or thermistor temperature measurements
• Scanning speeds as high as 800 channels/second with the solid state relay module

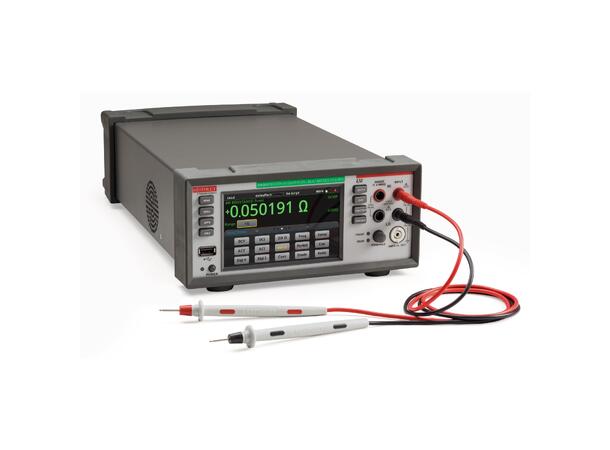

• Front panel jacks for stand-alone DMM operation
• KickStart easy-to-use control software with a data acquisition and logging application
• Three-year warranty

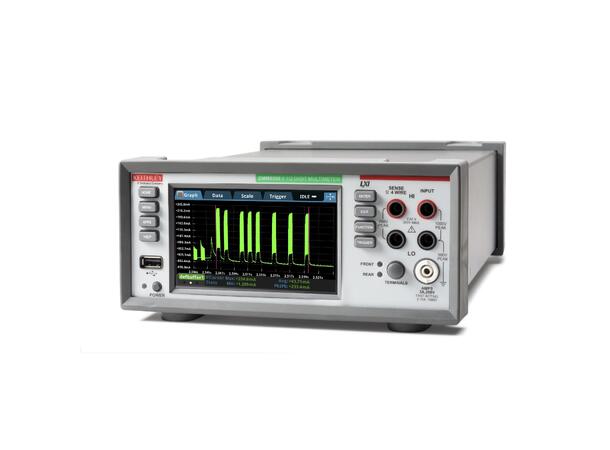

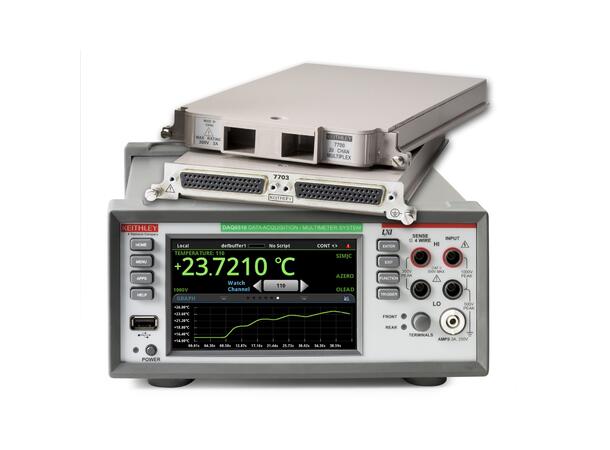

The DAQ6510 is a precision data acquisition and logging system that creates a new level of simplicity compared with the often complicated configuration and control found in many stand-alone solutions. A large 5-inch (12.7 cm) multi-touch display will guide users through set-up, data visualization, and analysis, removing the necessity of a PC and custom software for many applications. If you prefer or require a PC, a complement of IVI and Labview drivers and the Keithley KickStart Instrument Control Software are available to help with any application. Using Keithley’s newest 6½-digit multimeter technology, you will find even greater accuracy, functionality, and speed. Two-year accuracy specifications are included, so you can be assured your critical measurements remain accurate and fully traceable.

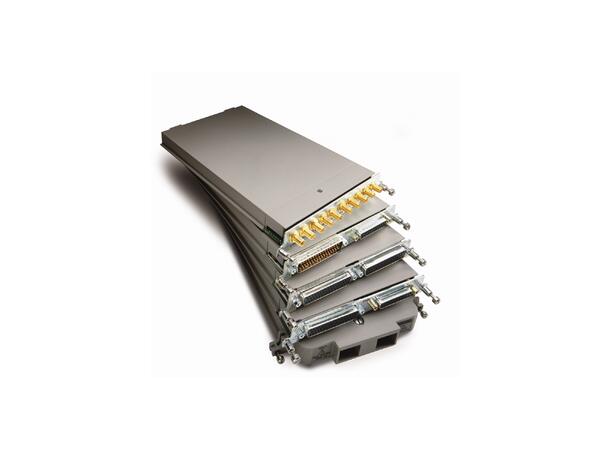

With 12 plug-in switching and control modules available and two module slots, you can build a test system that can measure or control up to 80 devices-under-test (DUTs) in a multiplexing configuration. With two 6×8 matrix modules, a total of 96 crosspoints, the DAQ6510 can test one or multiple ICs. For high volume production testing, select a solid state multiplexer module to maximize throughput with 800 channels/s scanning speed and minimize downtime compared with fixed life, electro-mechanical relays. A number of modules have cold junction compensation, temperature references for thermocouple temperature monitoring of devices during environmental testing, and HALT and HASS accelerated life testing. Even switch signals from wireless devices with RF modules having a maximum switching frequency of 3.5 GHz.
