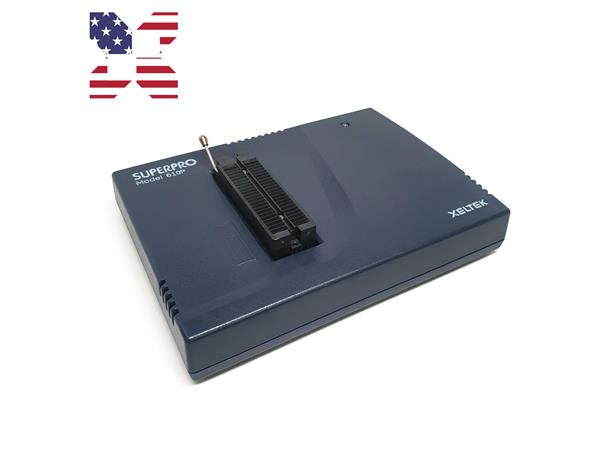

SuperPro 610P is a high performance and low cost 48 pin programmer with USB2.0 interface which comes with free software updates.
Application and target customers: Low to medium volume programming, electronic repair, car repair shop, students and hobbyists.
Advantages of SuperPro 610P
Project Files
The project file stores preparations before programming. Users could also restore and save work environment. The project file includes device type, buffer data, operation option settings, configuration bit settings and batch commands. Project files may be password protected to increase security and reliability when operated by untrained operators.
Auto Function
The Auto function organizes different functions into a sequential group (erase, blank check, program, verify and protect). Functions are executed in sequential order similar to a batch command.
Production Mode
Once a chip is inserted correctly, the programmer automatically starts batch command of erase, blank check, program and verify. Auto chip detection saves time and increases efficiency.
Production Statistics
A log file could be used to save operation information before exiting the program. Log files can also be used to facilitate quality tracking.
Factory Mode
This mode is designed for factory volume production. To prevent operation errors from destroying chips and wrong data written to the chip, SuperPro will operate in the Auto function mode.The administrator can set a password to prevent unauthorized access to the system.
Auto Recognition of File Types
We support almost all kinds of known file formats including file formats with automatic recognition functions: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc.
Auto Increment of Serial Numbers
Auto-generation of electronic serial numbers is available on Superpro 610P. This feature is implemented by setting Auto Increment in Operation Option. Auto Increment allows users to add unique serial number into the device. After each successful programming, the software automatically changes the value by the specified increment mode.
Intellectual Property Protection
Password settings available in both PC and stand-alone mode.
