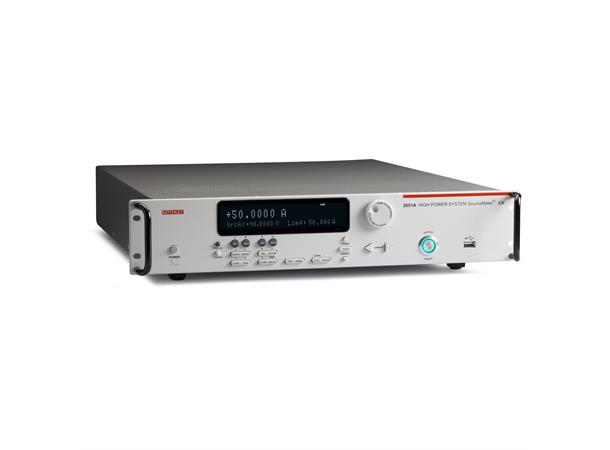

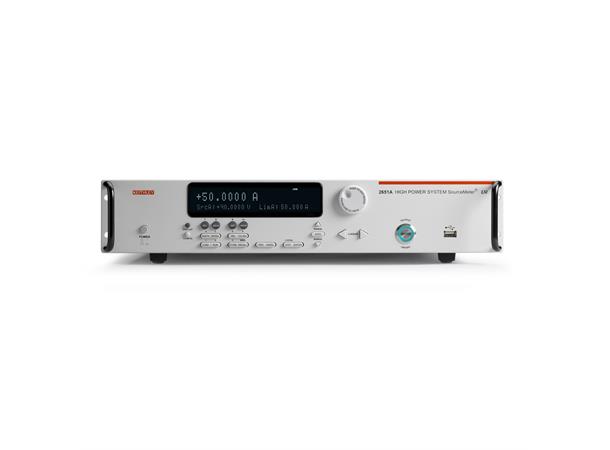

The Keithley 2650 Series High Power SourceMeter SMU Instruments are designed specifically for characterizing and testing high voltage/current electronics and power semiconductors, such as diodes, FETs, and IGBTs, high brightness LEDs, DC-DC converters, batteries, solar cells, and other high power materials, components, modules, and subassemblies. They deliver unprecedented power, precision, speed, flexibility, and ease of use to improve productivity in R&D, production test, and reliability environments. Two instruments are available offering up to 3000V or up to 2000W of pulse current power.

Key Features

• Source or sink:

               2,000 W of pulsed power (±40 V, ±50 A)

                200 W of DC power (±10 V @ ±20A, ±20 V @ ±10 A, ±40 V @ ±5 A)

• Easily connect two units (in series or parallel) to create solutions up to ±100 A or ±80 V
• 1 pA resolution enables precise measurement of very low leakage currents
• 1 µs per point (1 MHz), 18-bit sampling, accurately characterizes transient behavior
• 1% to 100% pulse duty cycle for pulse width modulated (PWM) drive schemes and device- specific drive stimulus
• Combines a precision power supply, current source, DMM, arbitrary waveform generator, V or I pulse generator with measurement, electronic load, and trigger controller—all in one instrument
