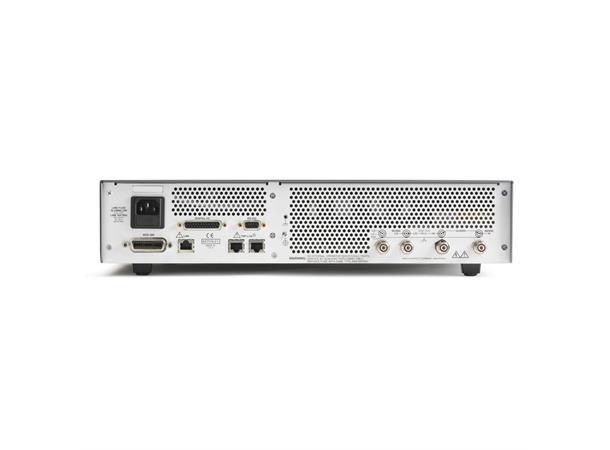

The Keithley 2650 Series High Power SourceMeter SMU Instruments are designed specifically for characterizing and testing high voltage/current electronics and power semiconductors, such as diodes, FETs, and IGBTs, high brightness LEDs, DC-DC converters, batteries, solar cells, and other high power materials, components, modules, and subassemblies. They deliver unprecedented power, precision, speed, flexibility, and ease of use to improve productivity in R&D, production test, and reliability environments. Two instruments are available offering up to 3000V or up to 2000W of pulse current power.

Key Features

• Source or sink up to 180 W of DC or pulsed power (±3000 V @ 20 mA, ±1500 V @ 120 mA)
• 1 fA low current resolution
• Dual 22-bit precision ADCs and dual 18-bit 1 µs per point digitizers for high accuracy and high speed transient capture
• Fully TSP® compliant for easy system integration with Series 2600B System SourceMeter models
• Combines a precision power supply, current source, DMM, arbitrary waveform generator, V or I pulse generator, electronic 18-bit load, and trigger controller
  – all in one instrument.


Includes TSP® Express characterization software, LabVIEW® driver, and Keithley’s Test Scripm generator, V or I pulse generator with measurement, electronic load, and trigger controller—all in one instrument
