Compact, versatile oscilloscope for daily debug

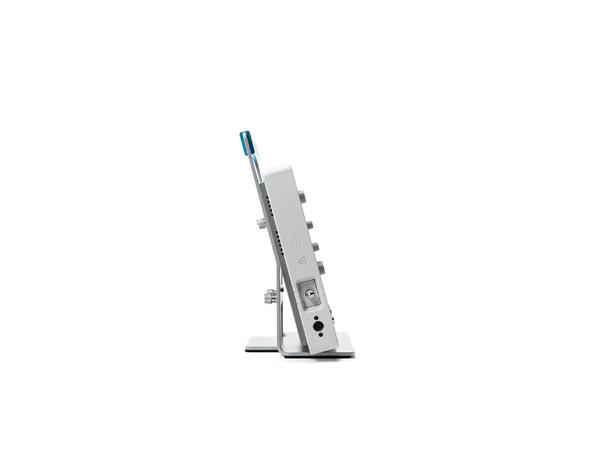

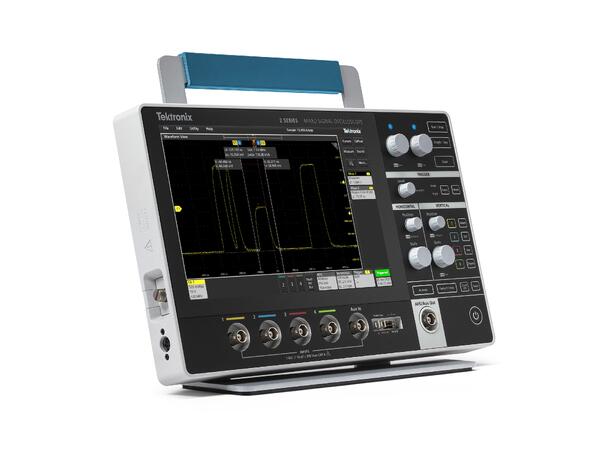

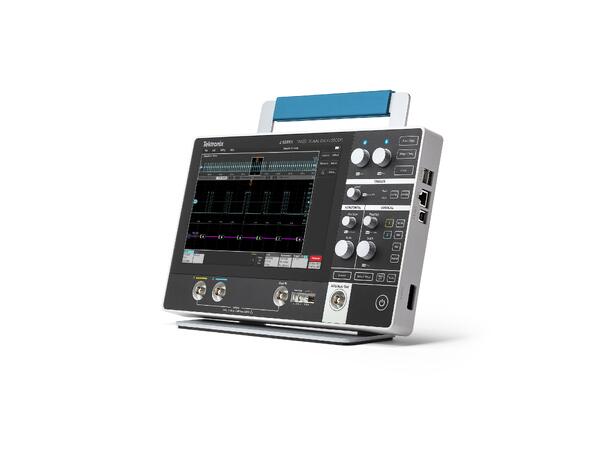

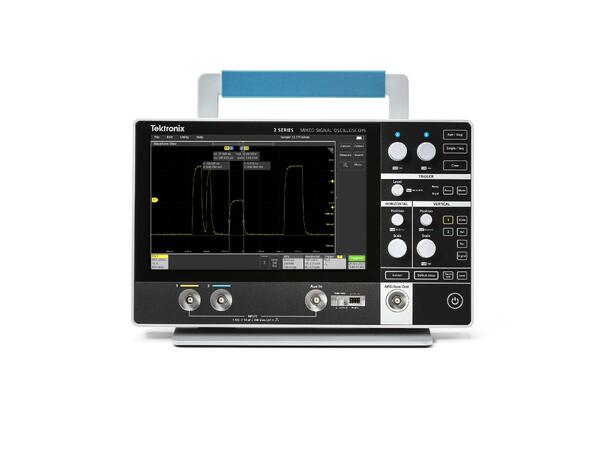

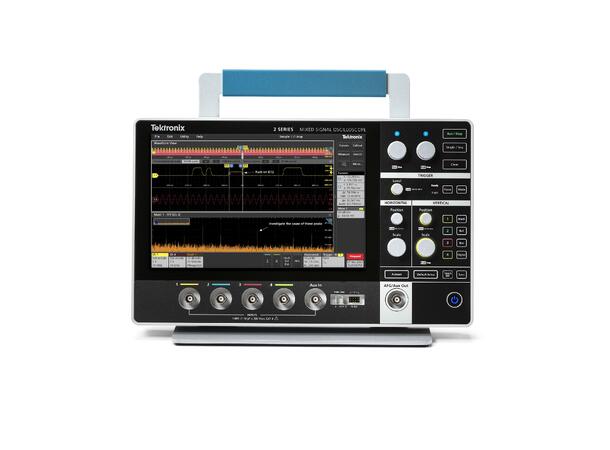

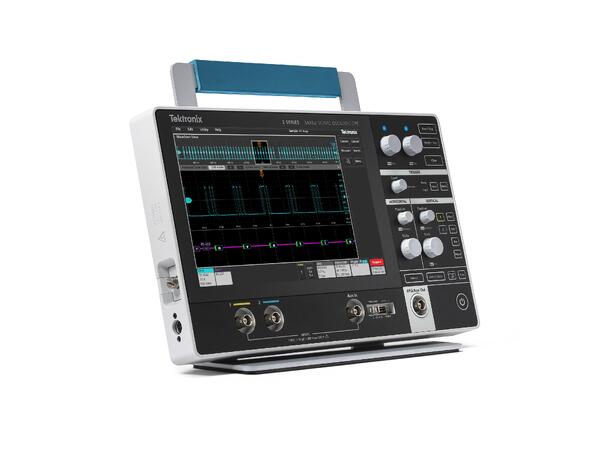

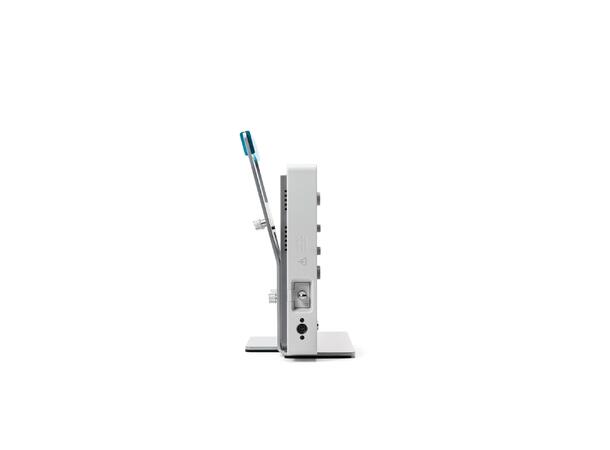

The 2 Series MSO features up to 4 analog channels, 500 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, 50 MHz AFG, 4-bit digital pattern generator, advanced triggers, and protocol decode, all in a compact form factor about 1.5” thick. The 2 Series MSO is the go-to oscilloscope for electronic debug and test, no matter where you work.

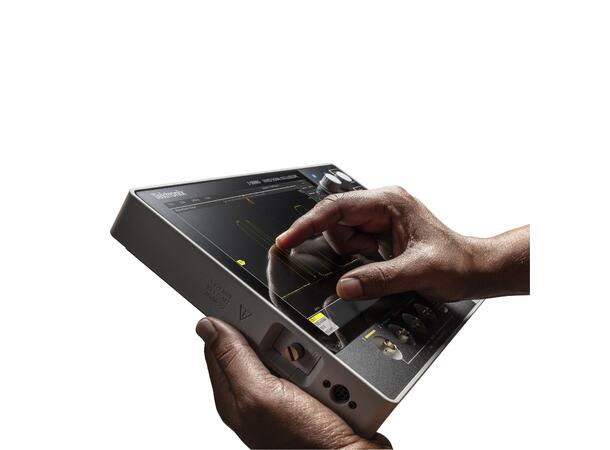

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO is a member of the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope

The optional battery pack extends the instrument capabilities by enabling the same instrument that is used in the lab to also be used in the field.

A large catalog of compatible probes and well-rounded set of accessories make the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Key performance specifications

Analog input channels

• 2 or 4 inputs

Bandwidth

• 70 MHz, 100 MHz, 200 MHz, 350 MHz, and 500 MHz

Sample rate

• 2.5 GS/s half channels
• 1.25 GS/s all channels

Record length

• 10 M points per channel

Vertical resolution

• 8 bits ADC
• Up to 16 bits in high-resolution mode

Standard trigger types

• Edge, pulse width, runt, timeout, logic, setup & hold, rise/fall time, and parallel bus

Standard analysis

• Cursors: Waveform, V bars, H bars, and V&H bars
• Measurements: 37
• Plots: XY, limit mask
• Math: Basic waveform arithmetic, FFT, and advanced equation editor
• Search: Search on any trigger criteria

Serial trigger, decode and analysis (optional)

• I2C, SPI, RS-232/422/485/UART, CAN, CAN FD, CAN XL, LIN, and SENT

Digital input channels (optional)

• 16 inputs

Arbitrary function generator (optional)

• 50 MHz waveform generation
• Waveform types: Arbitrary, sine, square, pulse, ramp, triangle, DC level, gaussian, lorentz, exponential rise/fall, sin(x)/x, random noise, haversine, and cardiac

Digital pattern generator (optional)

• 4 bit
• User defined, manual, and toggle

Display

• 10.1-inch TFT color
• WXGA (1280 x 800) resolution
• Capacitive (multi-touch) touchscreen

Connectivity

• USB 2.0 Device (one port)
• USB 2.0 Host (dual-port)
• LAN (10/100 MB/s Base-T Ethernet)

Battery pack (optional)

• Battery pack with two battery slots and hot-swap capability
• Typical usage eight hours with dual batteries

Remote control

• Remotely view and control the oscilloscope over a network connection through remote Virtual Network Computing (VNC).

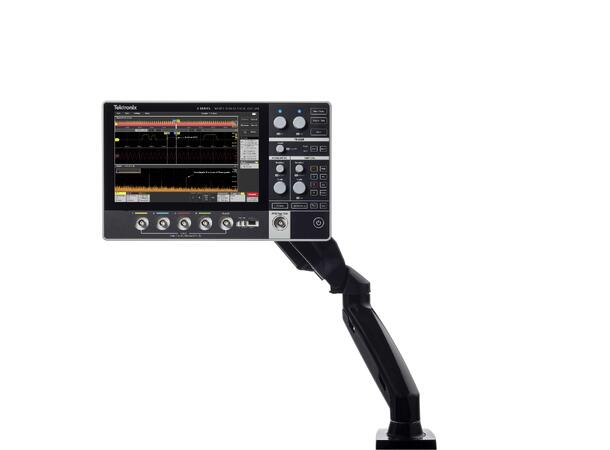

VESA mount

• 100 mm x 100 mm VESA interface

Security

• Kensington lock, T-Bar style
• Software: Security options for connectivity

Standard probes

• One TPP0200 200 MHz, 10:1 voltage probe per channel
• P6139B 500 MHz 10X 8pF load probes can be purchased additionally (bundle)

Collaborative tools (optional)

• TekDrive: Save and recall waveforms, setups, and screenshots from TekDrive cloud?. Share data with other members on the team.
• TekScope: Perform basic instrument control and transfer waveform data to PC. Offline analysis such as protocol decode, automated measurements, etc on saved data.

Accessories (optional)

• Protective case bundle: Carrying bag, kick stand, protective rubber case
• Rackmount kit
• Hard case
• Battery charger

Warranty

• One year standard
• 3 or 5 years warranty and calibration options can be purchased
