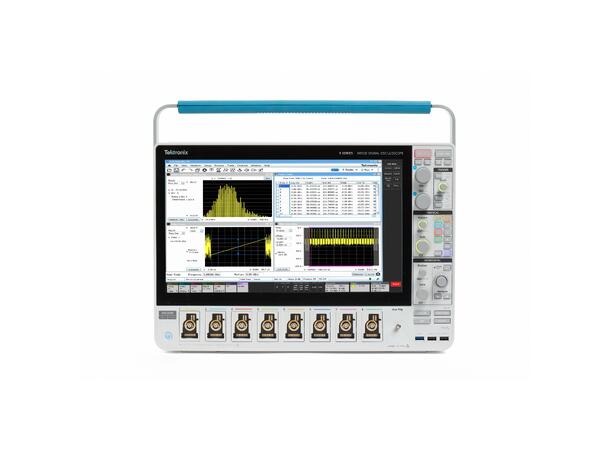

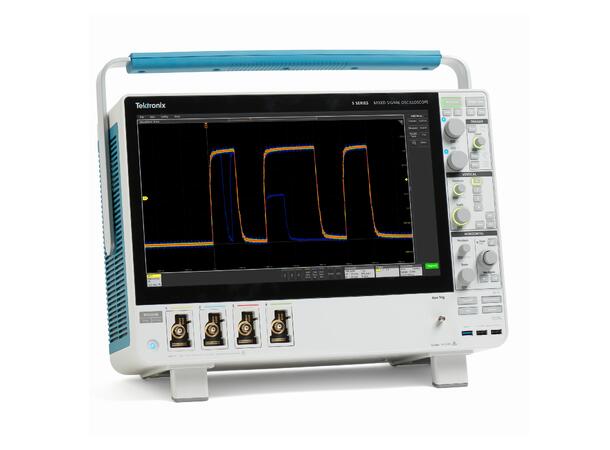

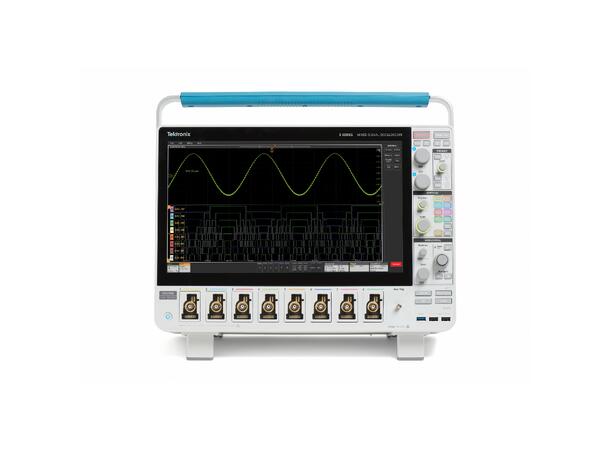

5 Series B MSO Mixed Signal Oscilloscope

Input channels

• 4, 6, or 8 FlexChannel® inputs
• Each FlexChannel provides: One analog signal that can be displayed as a waveform view, a spectral view, or both simultaneously
• Eight digital logic inputs with TLP058 logic probe

Bandwidth (all analog channels)

Sample rate (all analog / digital channels)

• Real-time: 6.25 GS/s
• Interpolated: 500 GS/s

Record length (all analog / digital channels)

• 62.5 Mpoints standard
• 125, 250, 500 Mpoints, (optional)1

Waveform capture rate

• >500,000 waveforms/s

Vertical resolution

• 12-bit ADC
• Up to 16-bits in High Res mode

Standard trigger types

• Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video (optional), RF vs. Time (optional)
  Auxiliary Trigger =5 VRMS, 50Ohms, 250 MHz (>200 mVpp) (Edge Trigger only)

Standard analysis

• Cursors: Waveform, V Bars, H Bars, V&H Bars

Measurements: 36

Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains

FastFrameTM: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second

Plots: Time Trend, Histogram, Spectrum and Phase Noise

Math: Basic waveform arithmetic, FFT, and advanced equation editor

Search: Search on any trigger criteria

Jitter: TIE and Phase Noise

Optional analysis

• Advanced Jitter and Eye Diagram Analysis
• User-defined filtering
• Advanced Spectrum View
• RF vs. Time traces (magnitude, frequency, phase)
• Digital Power Management
• Mask/Limit Testing
• Inverters, Motors, and Drives
• LVDS Debug and Analysis
• PAM3 Analysis
• Advanced Power Measurements and Analysis
• Advanced Vector Signal Analysis (SignalVu-PC)

Optional serial bus trigger, decode, and analysis

• I2C, SPI, eSPI, I3C, RS-232/422/485/UART, SPMI, SMBus, CAN, CAN FD, LIN, FlexRay, SENT, PSI5, CXPI, Automotive Ethernet,MIPI C-PHY,MIPI D-PHY, USB 2.0, eUSB2, Ethernet, EtherCAT, Audio, MIL-STD-1553, ARINC`429, Spacewire, 8B/10B,NRZ, Manchester, SVID, SDLC, 1-Wire, MDIO

Optional serial compliance test

• Ethernet, USB 2.0, Automotive Ethernet, Industrial Ethernet

Optional memory analysis

• DDR3 debug, analysis, and compliance test

Arbitrary/Function Generator

• 100 MHz waveform generation
• Waveform Types: Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac

Digital voltmeter

• 4-digit AC RMS, DC, and DC+AC RMS voltage measurements

Trigger frequency counter

• 8-digit

Display

• 15.6-inch (396 mm) TFT color
• High Definition (1,920 x 1,080) resolution
• Capacitive (multi-touch) touchscreen

Connectivity

• USB Host (7 ports), USB 3.0 Device (1 port), LAN (10/100/1000 Base-T Ethernet; LXI Compliant), Display Port, DVI-D, VGA

e*Scope®

• Remotely view and control the oscilloscope over a network connection through a standard web browser

Standard probes

• One 10 MO passive voltage probe with less than 4 pF capacitive loading per channel

Warranty

• 1 year standard
