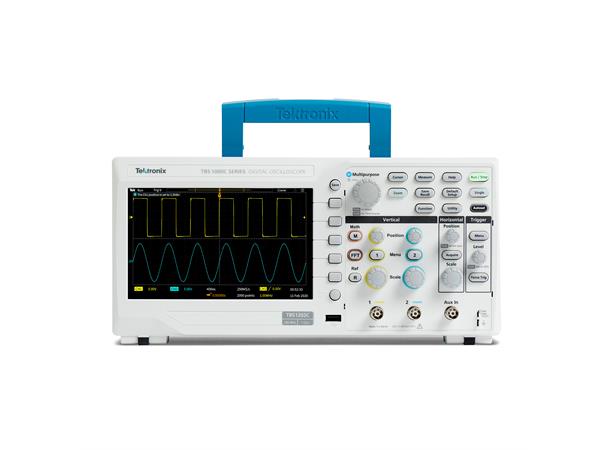

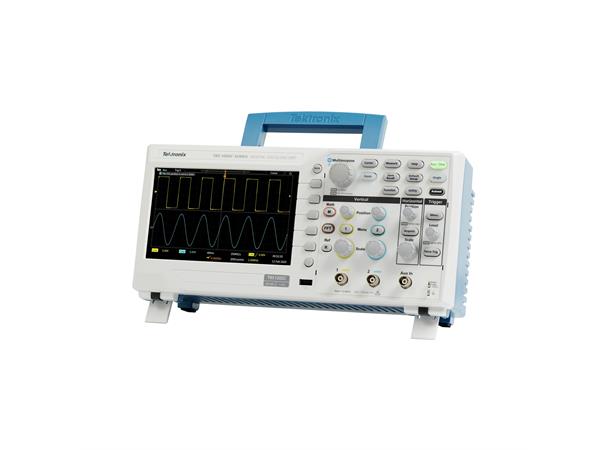

Tektronix TBS1000C series
Offering affordable performance in a compact design, the TBS1000C digital storage oscilloscope provides the features, versatility and durability required by today's educational institutions, embedded designers, and maker community. The TBS1000C includes a 7-inch WVGA color display with up to 1 GS/s sample rate, bandwidths from 50 MHz to 200 MHz and a five-year warranty. Its innovative courseware system integrates lab exercises with step-by-step instructions for students. The HelpEverywhere® system provides useful tips and hints throughout the user interface to make the instrument more approachable to a new user.
Key performance specifications
- 200 MHz, 100 MHz, 70 MHz and 50 MHz bandwidth models
- 2-channel models
- 1 GS/s sample rate on all channels
- 20k point record length on all channels
- Advanced triggers include pulse, runt, and line triggers
- Five-year warranty
Key features
- 7-inch WVGA color display with 15 horizontal divisions that shows 50% more signal
- 32 automated measurements
- Dual window FFT with simultaneous time and frequency domain views
- Trigger frequency counter
- Pan and Zoom capability
- Multi-language user interface with support for 10 languages in the user interface and front panel overlay

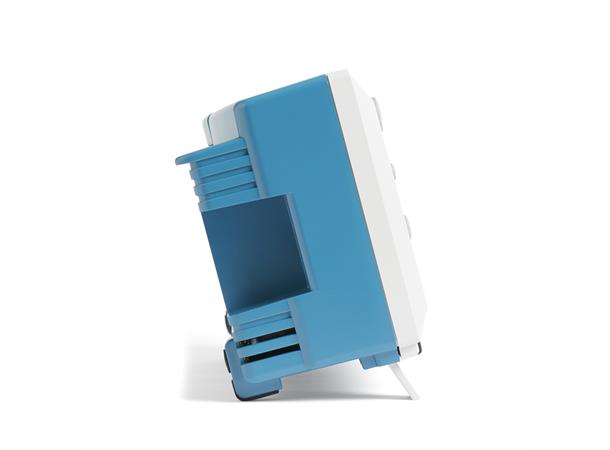

- Small footprint and light weight
- Fanless design contributes to low noise operation
Connectivity
- USB 2.0 host port on the front panel for quick and easy data storage.

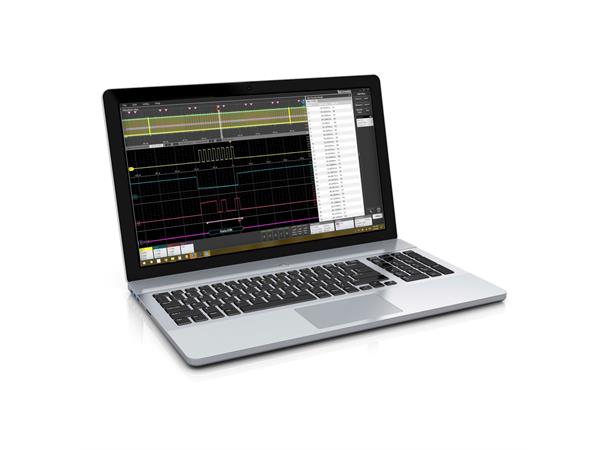

- USB 2.0 device port on rear panel to connect to a PC and remotely control the instrument.
