Product description
The TLP058 FlexChannel® logic probe connects all instruments
with FlexChannel® inputs to digital buses and signals on your
device under test (DUT). The probe contains 8 data channels.

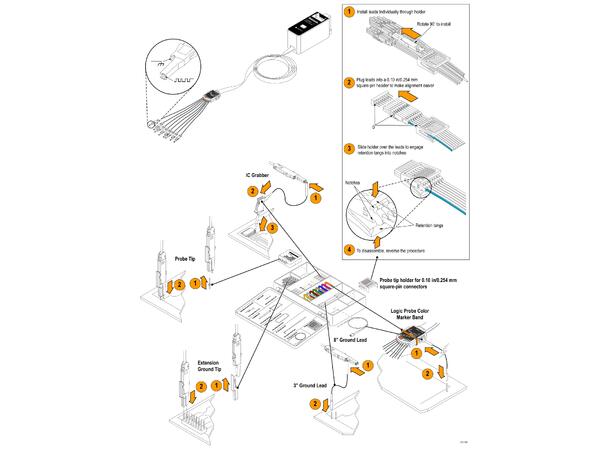

All leads include a ground connection at the tip. You can
connect the probe leads separately to the target system, or group
the leads together using the probe tip holder.

Characteristic Description
Threshold voltage   -   ± 40 V
Minimum detectable pulse width   -   1 ns
Maximum input toggle rate   -   500 MHz
Maximum sample rate   -   6.25 GS/s
Digital to analog trigger skew -   5 ns
Probe length   -    1.0 m (3.28 ft)
