Telewave TWL-300 Coaxial dry load N-mail 0-1000MHz, 300W

Telewave TWL-300 Coaxial dry load N-mail

0-1000MHz, 300W

Varenr: TWL300

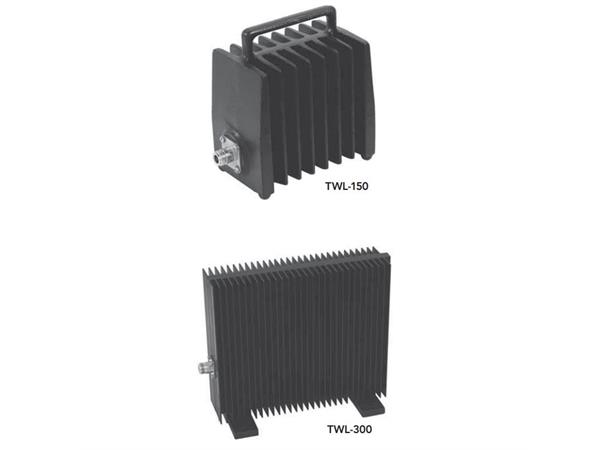

TWL-150, TWL-300 HIGH POWER TERMINATIONS

The Telewave TWL-150 Bench Load is ideal as a general purpose medium power termination. It is perfectly suited for terminating the Model 44A Broadband wattmeter, or any other application requiring a very low VSWR, 50 ohm termination. The carry handle and rugged construction allow convenient field use.

The Telewave TWL-300 Bench Load is our highest power standard termination. This load is designed for testing high power amplifiers, for applications requiring longer duty cycles.

Telewave coaxial loads feature extremely low VSWR and excellent stability. Applications include hybrids, isolators, power monitors, wattmeters, and coax line terminations.

Telewave loads are custom machined to withstand bench or field use. The conservative power rating provides substantial overload protection. Unlike liquid dielectric loads, Telewave dry coaxial terminations can be operated in any position.

All connectors have gold-plated c e n t e r p i n s f o r m a x i m u m conductivity. Quick-Change connectors are standard on these loads,  allowing easy configuration for any application. Specify connector type(s) when ordering.

For added flexibility, straight or elbow-type male-male adapters are available.
