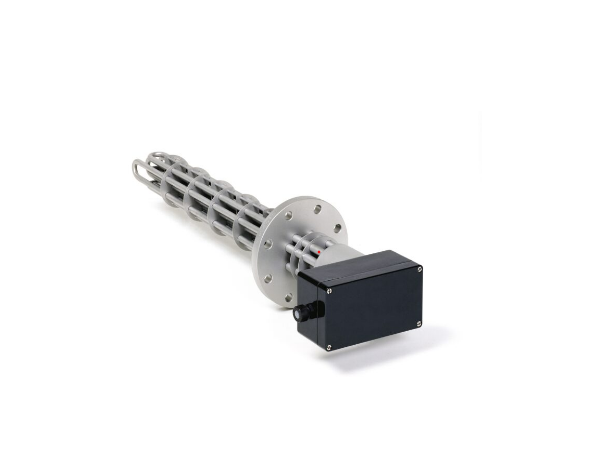

Type IH12
Type of protection IP 66
Ambient temperature 20 ... 40 °C
Power 12 kW
Voltage 3 x 400/230 Volt 3 ph / 50 Hz)
Load approx. 2,4 Watt/cm²
Installed length 680 mm
Heated length 600 mm
Total Length ca. 975 mm
Installation horizontally
Heating elements 6
Heating elements dia. 12,5mm, Material AISI 316L
Flansch DN 100, PN 16 with spring,
Material 1.4404
Anschlusskasten Polyester IP 66 (120x220x90 mm)
Temperature monitoring Safety cut-out
