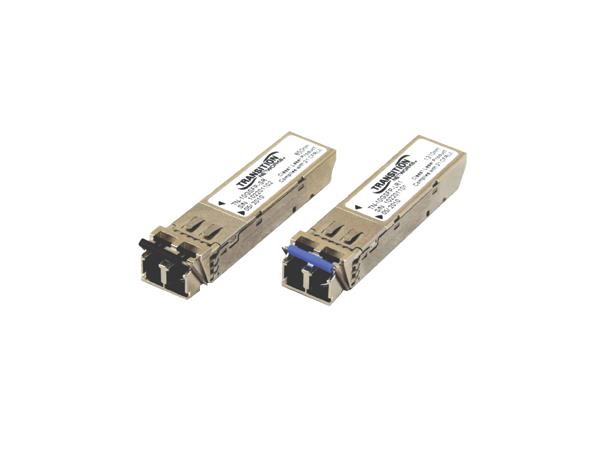

Transition Networks 10GBase SFP+ Modul
10GBase SFP+ MSA Compatible Duplex LC, Multimode
- SFP+ Optical Transceiver with
- Duplex LC connector
- 10G small Form-Factor Pluggable (SFP+) MSA compatible
- SFF-8472 Digital Diagnostic Function (DMI)
- Single +3.3 V Power Supply
- Up to 10.5 Gbps bidirectional data links
- RoHS Compliant (all models)
- 0 to 70°C Operating Temperature range
- -40 to 85°C Storage Temperature range
- Class 1 Laser International Safety
TN-10GSFP-SR:
- Compliant with IEEE 802.3ae 10GBASE-SR/SW.
- Link Length up to 300 m with OM3 multi-mode fiber.
- Link Length up to 82 m with OM2 multi-mode fiber.
- Link Length up to 33 m with OM1 multimode fiber.
Specifications
Standards: IEEE802.3ae
Data Rates: 10.3 Gbps
Dimensions: Width: 0.52 [13 mm]
Depth: 2.2 [56 mm]
Height: 0.33 [8 mm]
Power Supply +3.3V
Operating Temp 0°C - 70°C (32°F to 158°F)
Storage Temp -40°C - 85°C (-40°F to 185°F)
Compliance IEC-60825; FAD 21; CFR 1040.10 and 1040.11
Warranty Lifetime
