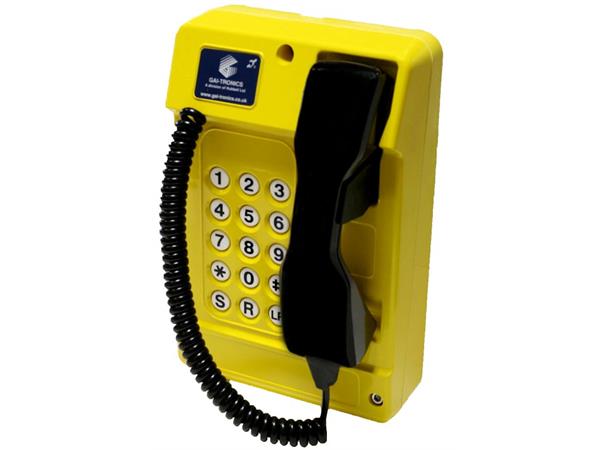

Commander

Plastic Bodied Heavy Duty Telephone

The Commander family of telephones are tough, weather resistant units built to withstand abuse and environmental extremes. The Commander body is moulded in glass filled polyester to prevent rust and corrosion. It is simple to install with fixings concealed from view giving increased security from vandalism.

Voice over IP (SIP protocol) GAI-Tronics VoIP-SIP telephones support Power over Ethernet (PoE) to combine power and connection to LAN or WAN. GAI-Tronics telephones now feature a secondary RJ45 port option which allows two or more telephones to be connected in series*. GAI-Tronics VoIP-SIP phones offer a wealth of additional features including real-time reporting via Syslog, and can be configured by web browser.

• Standard and SMART Analogue, VoIP-SIP and GSM(GSM-R) options available
• Vandal resistant handset and cord
• Robust and weather resistant: IP65 or IP66 (curly cord handset)
• Full keypad with memory, full keypad, CB and 3 button programmable autodialler telephones
• 2 x RJ45 Connectors as option for VoIP
• Audio Path Testing
• Dual purpose design for wall or desk mounting, simple installation
• Large tactile buttons, easy to see and operate
• Inductive Coupler fitted as standard for hard of hearing
• Standard or customised units
• Handset cord length options
• CE Compliant

General Specifications

Casing Material: Glass filled polyester.

Colours: yellow, other colours to special order

Handset Material: Cycoloy with stainless steel spiral cord, or curled cord

Keypad: Weathersealed tactile digital keypad. Silicone rubber material, resistant to most chemicals and solvents

Operating temperature: -20° C to +60° C

Weather Resistance: Up to IP65 steel cord/ IP66 curly cord

Ringing Tone: Shrill warble tone 80 dBA @ 1 metre typical

Hookswitch: Electronic / magnetic with no visible moving parts

M.T.B.F. : Calculated to have an M.T.B.F. in excess of 50,000 hours using MIL-HDBK-217F Notice 2

Weight: 3 kg approx
