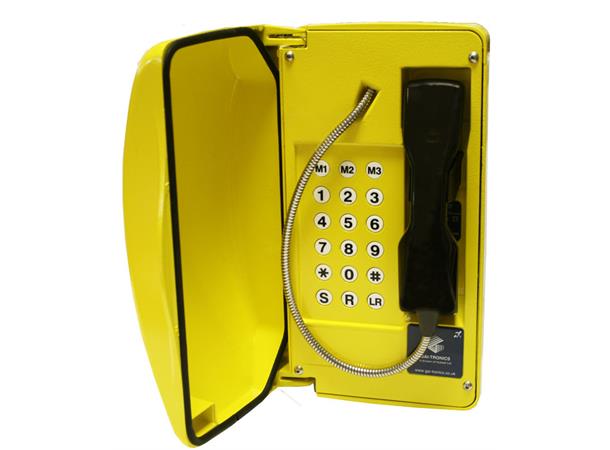

Titan
Metal Bodied Weather and Vandal Resistant Telephone
Titan’s aluminium body is robust and designed to last longer in hostile outdoor environments. Along with weather and vandal resistance, the Titan range meets the acoustic performance, reliability and varying applications demanded by today’s markets. Titan is simple to install with fixings concealed from view giving increased security from vandalism. Cable entries are via water-tight glands while push buttons are weather sealed. Its spring loaded door also gives extra weather protection to the telephone.
Standard and SMART Analogue, VoIP-SIP and GSM(GSM-R) options available
Vandal Resistant Handset and Cord
Robust and weather resistant upto IP66
Full keypad with memory, CB and 3 button programmable autodialler telephones
2 x RJ45 Connectors as option for VoIP*
Multi purpose design for wall or post mounting, simple installation
Large tactile buttons, easy to see and operate
Inductive Coupler fitted as standard for hard of hearing
Standard or customised units
CE Compliant
General Specifications
Casing Material: Die cast aluminium, epoxy powder coated. Colours: yellow, other colours to special order
Handset Material: Cycoloy with stainless steel spiral cord. Noise cancelling handset version available.
Keypad: Weathersealed tactile digital keypad. Silicone rubber material, resistant to most chemicals and solvents
Temperature: Operating: -20° C to +60° C (Full dialler analogue: -40° C to +60° C) Storing: -40° C to +70° C
Weather Resistance: Door open - up to IP65 Door closed - IP66
Ringing Tone: Shrill warble tone 80 dBA @ 1 metre typical
Hookswitch: Electronic / magnetic with no visible moving parts
M.T.B.F.: Calculated to have an M.T.B.F. in excess of 50,000 hours using MIL-HDBK-217F Notice 2
Weight: Up to 5 kg depending on option
