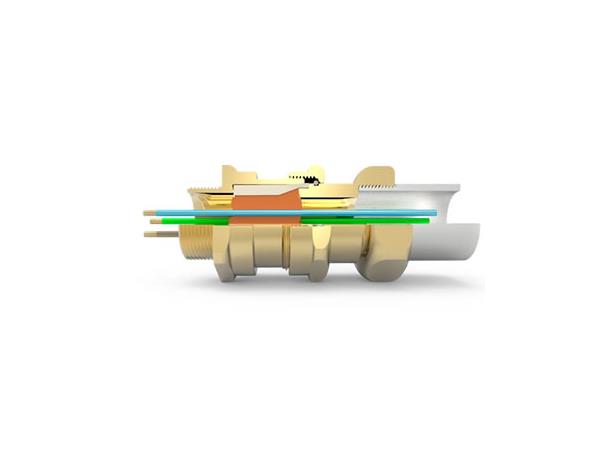

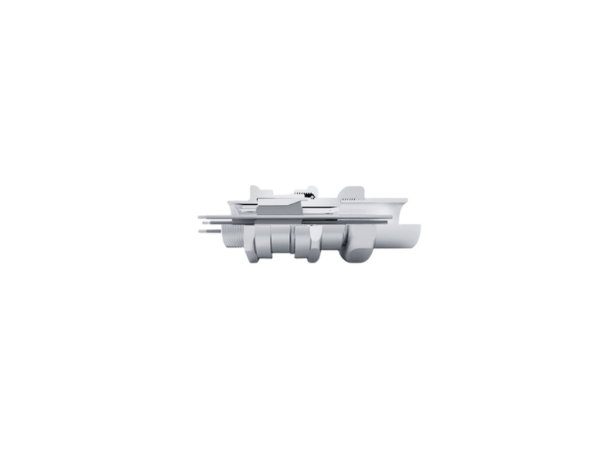

General
| Application |
Suitable for use in Zone 1, Zone 2, Zone 21 and Zone 22 and in Gas Groups IIA, IIB and IIC. Explosion-proof Class 1 Division 2 Groups ABCD, Class II Division 2 Groups EFG, Class III |
| Ingress Protection |
IP66, IP67 and IP68 (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X |
| Material |
Brass, NP Brass or Stainless Steel |
| Operating Temperature |
-60°C to +80 °C |
| Series |
Group II Cable Glands |
Certifications and Compliance
| ATEX File Number |
CML19ATEX1170X, and IECEx CML19.0048X |
| CSA File Number |
CSA1015065 for Marine Shipboard Cable |
| Certification |
- IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31
- UL 60079-0, UL 60079-1, UL 60079-7, UL 2225
- CSA 22.2 No: 60079-0, CSA 22.2 No: 60079-1, CSA 22.2 No: 60079-7, CSA 22.2 No: 60079-31
- ISA 60079-31
|
| Hazardous Rating(s) |
- Flameproof Exdb IIC Gb, Increased Safety Exeb IIC Gb and Dust Extb IIIC Db Ex II 2 GD
- Flameproof AExd IIC Gb, Increased Safety AExe IIC Gb and Dust AExtD Zone 21
- Deluge Protection to DTS01
|
| CABLE GLAND SELECTION TABLE |
Size
Ref. |
Entry Thread
Size |
Inner Sheath / Cores |
‘G’
Metric
|
Hexagon
Dimensions |
| Male |
Female |
| Metric |
NPT* |
Metric |
NPT* |
Max. Over
Cores
'B' |
Max. Inner
Sheath
'E' |
Max. No. of
Cores |
Across
Flats |
Across
Corners |
| Standard |
Option |
Standard |
Option |
|
| A |
M20 |
¾" |
½" |
M20 |
¾" |
½" |
11.0 |
12.5 |
15 |
74 |
30.0 |
32.5 |
| B |
M25 |
1" |
¾" |
M25 |
1" |
¾" |
16.2 |
18.4 |
30 |
65 |
36.0 |
39.5 |
| C |
M32 |
1¼" |
1" |
M32 |
1¼" |
1" |
21.9 |
24.7 |
42 |
80 |
46.0 |
50.5 |
| C2 |
M40 |
1½" |
1¼" |
M40 |
1½" |
1¼" |
26.3 |
29.7 |
60 |
83 |
55.0 |
60.6 |
| D |
M50 |
2" |
1½" |
M50 |
2" |
1½" |
37.1 |
41.7 |
80 |
94 |
65.0 |
70.8 |
| E |
M63 |
2½" |
2" |
M63 |
2½" |
2" |
47.8 |
53.5 |
100 |
97 |
80.0 |
88.0 |
| F |
M75 |
3" |
2½" |
M75 |
3" |
2½" |
59.0 |
66.2 / 65.3¹ |
120 |
100 |
95.0 |
104.0 |
'T' — All dimensions in millimetres (except * where dimensions are in inches). Metric entry threads are 1.5mm pitch as standard, 15mm length of thread.
¹ Smaller value is applicable when selecting reduced NPT male entry option. Hexagon dimensions as shown may alter.
|
