KAMPANJE (gjelder til 31.12.2024)
MSO4B Bundle Promo med 35 % rabatt
Kjøp et 4 eller 6 kanals MSO4B oscilloskop med startpakke og utvidet garanti og få 35 % rabatt på hele pakken.
Oscilloskop:
4 kanaler
MSO44B 4-BW-350, 4 kanaler, 350 MHz båndbredde, 12 bit ADC
MSO44B 4-BW-500, 4 kanaler, 500 MHz båndbredde, 12 bit ADC
MSO44B 4-BW-1000, 4 kanaler, 1 GHz båndbredde, 12 bit ADC
MSO44B 4-BW-1500, 4 kanaler, 1,5 GHz båndbredde, 12 bit ADC
6 kanaler

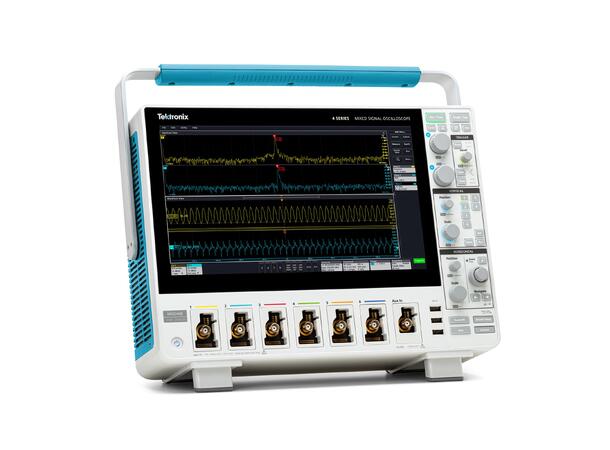

MSO46B 4-BW-350, 6 kanaler, 350 MHz båndbredde, 12 bit ADC
MSO46B 4-BW-500, 6 kanaler, 500 MHz båndbredde, 12 bit ADC
MSO46B 4-BW-1000, 6 kanaler, 1 GHz båndbredde, 12 bit ADC
MSO46B 4-BW-1500, 6 kanaler, 1,5 GHz båndbredde, 12 bit ADC
Starter Bundle
4-STARTER-PER lisensen inneholder

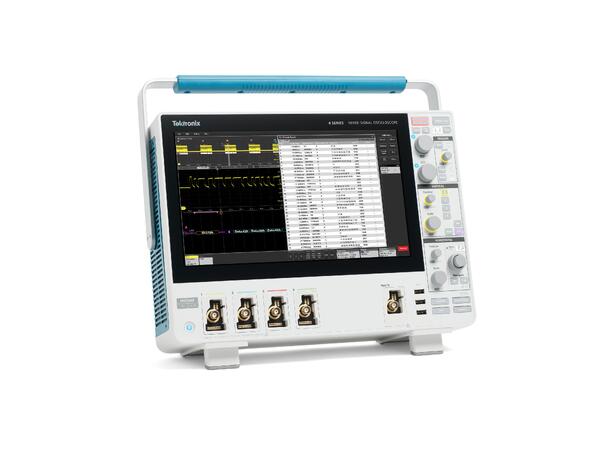

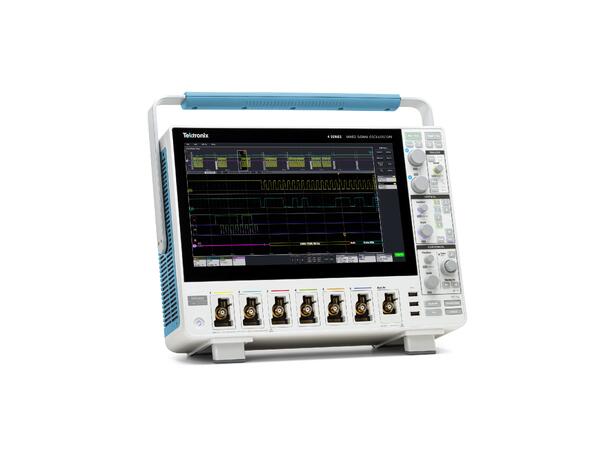

Seriell trigger, dekoding, søk og forekomst tabell for I2C, SPI, RS-232/422/485/UART busser
Integrert arbitrær funksjonsgenerator med 13 forhåndsdefinerte bølgeformer
Utvidet garanti
R3 opsjonen gir 3 års garanti (standard garanti er 1 år) med prioritert service ved Tektronix service senter i Køln. Adeptor AS foretar sending og retur via vårt lager i Oslo.
TILLEGGSKAMPANJE (gjelder til 31.12.2024)
Vi tilbyr 40 % rabatt på TekVPI prober og programvare som kjøpes sammen med hovedkampanjen.
Kontakt oss for mer informasjon, priser og tilbud!
Tektronix MSO4B Serien
- A new processor system for
- - 2X more responsive user interface
- - Faster analysis
- - Faster data transfers
- New display technology for greater contrast and wider viewing angle
- New annotations indicate key reference levels and times for measurements
The 4 Series B MSO combines performance and analysis capabilities to address the vast majority of engineering challenges with an industry-leading intuitive user interface. The “B” version features a significantly faster processor system that speeds analysis and makes controls 2X more responsive. The 4 Series offers 4 or 6 analog channels with 12-bit ADCs, 200 MHz to 1.5 GHz bandwidth and up to 6.25 GS/s sample rate with record lengths of 31.25 or 62.5 Mpoints. In addition to analog waveform measurements, each channel can be used for spectrum analysis or equipped with an 8-channel logic probe. It is available with a built-in function generator, support for over 25 serial protocols and power analysis packages, making it ideal for embedded system design, power supply design, and three-phase power electronics.
-
Product Series: 4 Series B MSO
-
Analog Channels: 4 or 6
-
Bandwidth: 200 MHz / 350 MHz / 500 MHz / 1 GHz / 1.5 GHz
-
Sampling Rate: 6.25 GS/s on all channels
-
Record Length: 31.25 Mpoints per channel, 62.5 Mpoints optional
-
Display Type: 13.3-inch TFT color • full HD (1920 x 1080) resolution • capacitive (multi-touch) touchscreen
-
Resolution: 12-bit; up to 16-bit in Hi Res mode
-

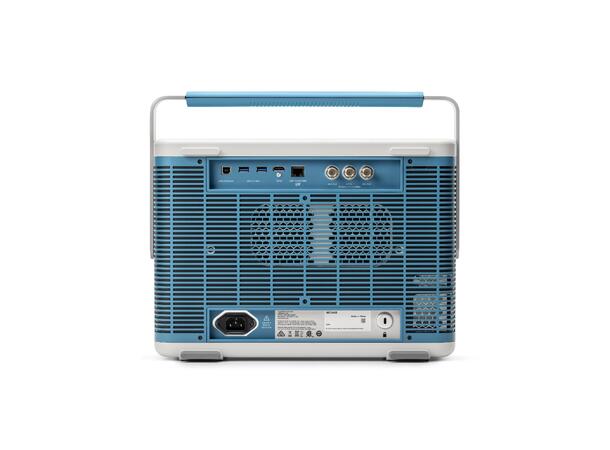

Ports: 3 x USB2 and 2 x USB3 Host, 1 USB Device, 1 Ethernet
-
Standard Warranty: 1 year

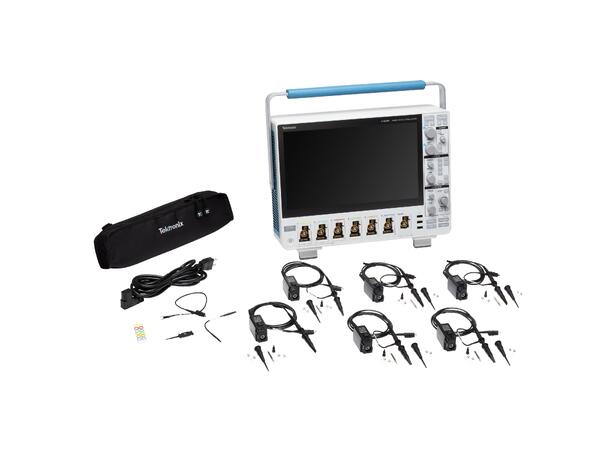

Ships with:
-
One passive analog probe per channel: TPP0250 250 MHz probes with 200 MHz bandwidth models; TPP0500B 500 MHz probes with 350 MHz and 500 MHz bandwidth models; TPP1000 1 GHz probes with 1 GHz and 1.5 GHz models
-
Installation and safety manual (translated in English, Japanese, and Simplified Chinese)
-
Embedded help
-
Power cord
-
Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
-
One-year warranty covering all parts and labor cost on the instrument and the included probes
